Laser cutting as a contact-free slitting process

Laser cutting is a slitting process with which it is possible to cut metallic and non-metallic raw materials of different material thicknesses. This is based around a laser beam which is guided, formed, and bundled. When it hits the workpiece, the material heats up to the extent that it melts or vaporizes. In this process, the whole laser power is concentrated on one point, with a diameter that is often less than half a millimeter. If more heat is introduced into this area than can dissipate through heat conduction, the laser beam will penetrate the material entirely – the cutting process has begun. While other processes involve applying large-scale tools with enormous power to the sheet metal, the laser beam completes its task without any contact. In this way, the tool does not incur wear, and no deformities or damage to the workpiece occur.

Advantages of laser cutting

Material range

All materials common in industrial processing – from steel to aluminum, stainless steel, and non-ferrous metal sheets, all the way to non-metal materials such as plastics, glass, wood, or ceramics – can be cut safely and in high quality with the laser. Very different sheet thicknesses of 0.5 to over 30 millimeters can be cut using the tool. This extremely wide material range makes the laser the top cutting tool for many applications in the area of metals and non-metals.

Contour freedom

The bundled laser beam only heats up the material locally, and the rest of the workpiece is subjected to minimal thermal stresses or not at all. This means the kerf is barely wider than the beam and even complex, intricate contours may be cut smoothly and free of burrs. Time-consuming post-processing is no longer necessary in most cases. Due to its flexibility, this cutting procedure is often used for small lot sizes, large variant ranges, and in prototype construction.

High-quality cutting edges with ultrashort pulses

Ultrashort pulse lasers vaporize virtually every material so quickly that heat influence cannot be detected, thereby creating high-quality cutting edges without ejection of melted material. This makes the lasers ideal for the manufacture of the most intricate metal products, such as stents for medical technology. In the display industry, ultrashort pulse lasers cut chemically hardened glass.

Discover our products for laser cutting

Whether 2D or 3D laser processing – TRUMPF offers machines and systems for extremely various applications for you.

Find out more

The laser cutting process

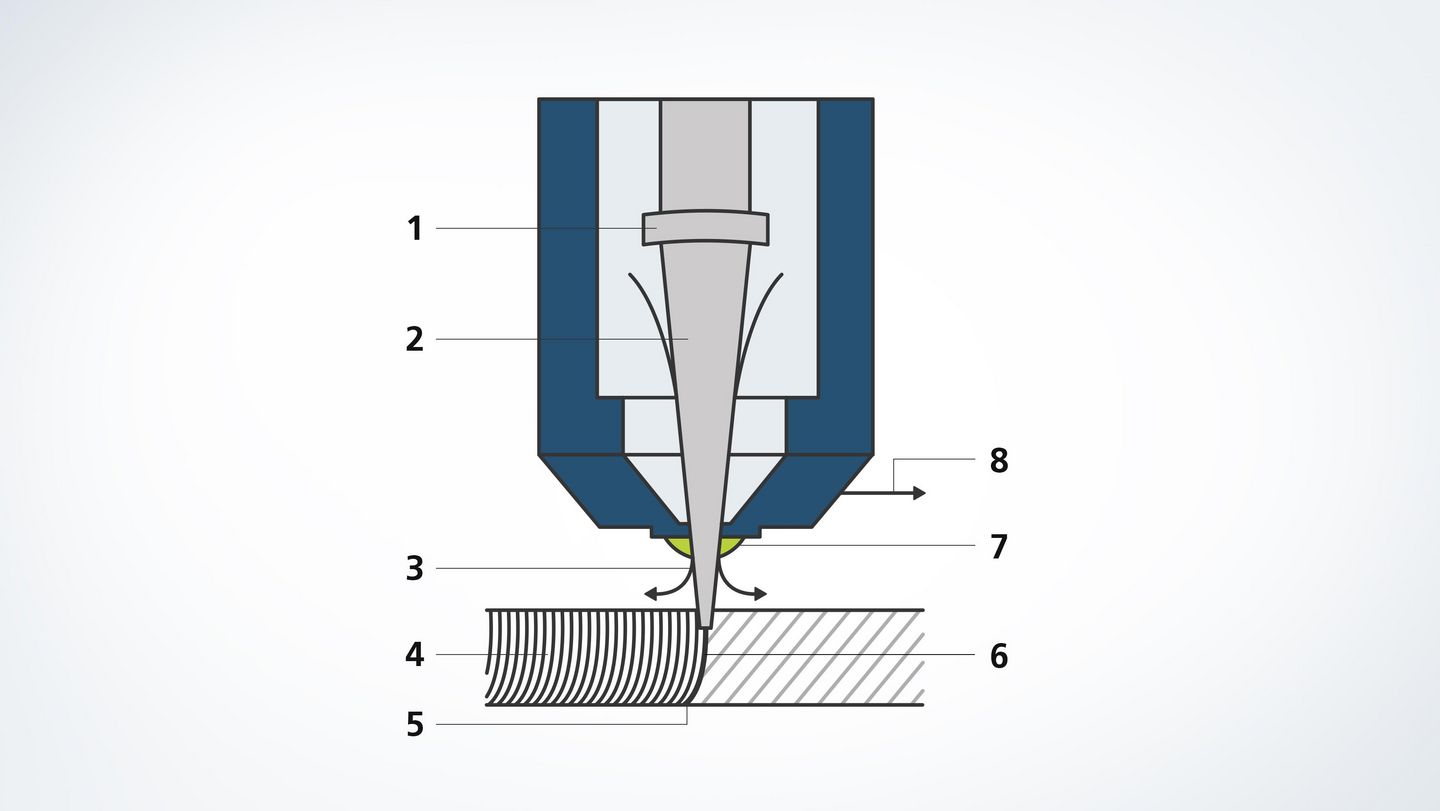

The interaction between a focused laser beam and workpiece forms the basis of laser cutting. In order for this process to be carried out reliably and precisely, numerous components and additional equipment are used on and around the laser beam, which will be illustrated in the following graphic.

Focusing optics: lens and mirror optics focus the laser beam on the processing point
Laser beam: the laser beam hits the workpiece and heats it up until it melts or vaporizes.
Cutting gas: the resulting melt is blown out of the kerf using cutting gas. The gas is emitted coaxially with the laser beam from the nozzle.
Drag lines: during laser cutting, the cutting edge is given a typical drag line pattern. At a lower cutting speed, these drag lines are virtually parallel to the laser beam.
Melt: the laser beam – bundled laser light – is guided along the contour and melts the material locally.
Cutting point: on the workpiece, the kerf is barely wider than the focused laser beam.
Nozzle: laser beam and cutting gas meet the workpiece through the cutting nozzle.
Cutting direction: the kerf is created by moving the cutting head or the workpiece in a specific direction.

Various applications in the area of laser cutting

Virtually no visible burr formation: the gearwheel shows the excellent part quality produced by laser cutting even in thicker materials.

From mild to stainless steel all the way to highly reflective materials – all industrially common materials can be processed by the laser with high levels of quality.

Fast, burr-free, and in three dimensions: this is how a laser cuts hotforming components such as B pillars in the automotive industry.

In fusion cutting, the laser cuts thin stainless and mild steel with a thickness from 0.5 millimeters, very quickly and cost effectively.

Laser-cut heat protection sheet for exhaust gas systems

Even components which are formed three-dimensionally such as heat protection sheets for exhaust gas systems may be precisely cut with a laser.

Cutting brittle-hard materials such as glass with a laser

Even brittle materials such as glass can be processed using laser cutting machines and at high speeds with mirror-smooth results – without burrs or chips.

BrightLine fiber is a sophisticated combination of special optics, flow-optimized nozzles, and additional technical innovations. The advantage: due to the high-quality cutting edges, parts do not get caught during part removal.

Compared to mechanical slitting processes, a laser allows household knives to be produced faster and without requiring post-processing on the cutting edge.

Short and ultrashort pulse lasers cut the most intricate structures at the micrometer level quickly and cost effectively. This is how laser-cut hands for the clock industry or laser-cut implants for medical technology are created.

All laser cutting procedures at a glance

When it comes to cutting metal and non-metal raw materials, the laser is in many cases the first choice as a universal tool. The laser beam cuts nearly any contour quickly and with flexibility – regardless of how intricate and complex the shape is, or how thin the material. In the process, various cutting gases and pressures influence the machining process and the result.

Flame cutting

For flame cutting, oxygen is used as the cutting gas; this is blown into the kerf with a pressure of up to 6 bar. There, it burns and oxidizes the metal melt. The energy generated by this chemical reaction supports the laser beam. Flame cutting allows for very high cutting speeds and the processing of thick sheet metals and mild steels.

Fusion cutting

During fusion cutting, nitrogen or argon are used as a cutting gas. This is driven through the kerf with a pressure between 2 and 20 bar, and unlike flame cutting, does not react with the metal surface in the kerf. This cutting procedure has the advantage that the cutting edges remain free of burrs or oxides, and reworking is barely required.

Sublimation cutting

Sublimation cutting is primarily used for precision cutting tasks which require very high-quality cutting edges. In this process, the laser vaporizes the material with as little melting as possible. The material vapor creates a high amount of pressure in the kerf, which forces the melt out in an upwards and downwards direction. The assist gas – nitrogen, argon, or helium – shields the cutting areas from the environment and ensures that the cutting edges remain free of oxides.

Laser precision cutting

For laser beam precision cutting, individuals bores are joined together with pulsed laser energy; these overlap by 50 to 90% and form a kerf. The short pulses create very high levels of peak pulse powers and extreme irradiances on the workpiece surface. The advantage: heating up of the component is very minimal, which allows for the cutting of even the most intricate parts without heat distortion.

Parameters which influence the laser cutting process

Focus position and focal diameter

The focus position influences the irradiance and form of the kerf on the workpiece. The focal diameter determines the gap width as well as the form of the kerf.

Laser power

So that the processing threshold – the point at which the material begins to melt – is exceeded, a specific amount of energy per surface area unit is required. This is defined as: energy per surface area unit = irradiance x exposure time on the workpiece.

Nozzle diameter

Choosing the right nozzle is crucial for part quality. The form of the gas beam as well a the gas quantity are determined by the diameter of the nozzle.

Operating mode

Continuous wave operation or pulsing – the operating mode allows you to control whether the laser energy is to hit the workpiece continuously or with interruptions.

Cutting speed

The respective cutting task and the material to be processed determine the cutting speed. As a basic rule: the more laser power that is provided, the faster the cutting can be carried out. Additionally, the cutting speed is reduced with increasing material thickness. If the speed for the respective material has been set too high or too low, increased surface roughness and burr formation can occur as a result.

Degree of polarization

Nearly all CO₂ lasers deliver linear polarized laser light. If contours are cut, the cutting result changes with the cutting direction: if the light oscillates parallel to the cutting direction, the edge will be smooth. If the light oscillates perpendicular to the cutting direction, this creates a burr. This is why linear polarized laser light is often switched over to circular polarized. The degree of polarization determines how well the target circular polarization was reached, and is decisive for cutting quality. Polarization must not be changed for solid-state lasers; it delivers direction-independent cutting results.

Cutting gases and cutting pressures

Different process gases are used depending on the cutting procedure; they are driven through the kerf at varying pressures. Argon and nitrogen as cutting gas, for example, have the advantage that they do not react to the melted metal in the kerf, while at the same time shielding the cutting area from the environment.

Laser cutting with a gas mixture

Burrs in mild steel and aluminum can be reduced when combining high laser power with the application of a gas mixture of nitrogen and oxygen. The improvement in part quality depends on the material type, material alloy and material quality in thick sheet ranges between six to twelve millimeters.
