Laser metal deposition – a process for various applications

Laser metal deposition is an additive manufacturing method for metals and metal-ceramic compounds. It can be used to generate or modify 3D geometries. The laser can also perform repairing or coating processes with this manufacturing method. In the aerospace industry, additive manufacturing is used to repair turbine blades. In tool construction and mold making, broken or worn edges and shaping functional surfaces are repaired or even armored locally. Bearing points, rollers or hydraulic components in energy technology or petrochemistry are coated to protect against wear and corrosion. Additive manufacturing is also used in automotive engineering. In this industry, large numbers of components are refined.

TRUMPF customers benefit from the broad portfolio of lasers and laser systems. We have many years of process expertise and services for numerous laser technology applications. Additive manufacturing can also be combined with laser welding or laser cutting.

The international term is usually "laser metal deposition", abbreviated LMD. The terms "Direct Metal Deposition" (DMD) or "Direct Energy Deposition" (DED) or "Laser Cladding" are also used.

What are the advantages of laser metal deposition?

Higher build rates

Laser metal deposition creates rough and very fine structures. High build rates are achieved in comparison to other methods in additive manufacturing.

Material range

In the process, several powders can be conveyed and supplied at the same time. This makes it possible to develop dedicated alloys or switch between materials. Sandwich structures are formed in this way.

Flexibility

Structures can be easily applied to 3D parts and uneven surfaces. Changes to the geometry are also easily possible.

Simple change of materials

Laser metal deposition makes it possible to change between different materials in a work process with ease.

Established method

Laser metal deposition is used to repair tools or components, for example in the aerospace industry. It is also used to apply thin layers for protection from corrosion and wear.

Innovative

Thanks to the magic of technology, maximum speeds of several hundred meters per minute can be achieved: high-speed laser metal deposition reveals its strengths in the coating of brake disks, for example.

How do the laser sources differ in the various LMD applications?

Laserauftragschweißen
Laser metal deposition (LMD)

Conventional laser metal deposition is used for flexible coating, repair and additive modification of 3D components. Since no process chamber is required for this method, very large components can also be processed. The applied layers are metallurgically bonded to the substrate so that high strength – often comparable to standard grades – can be achieved.

High-speed Laserauftragschweißen (HS-LMD)
High speed laser metal deposition (HS-LMD)

High speed laser metal deposition is based on the EHLA process (EHLA= extreme high speed laser metal deposition) developed by Fraunhofer ILT. It is suitable for coating large areas of rotationally symmetrical components with thin layers. As in conventional laser metal deposition, the applied layers are metallurgically welded to the substrate. Due to the very high processing speeds and the associated rapid cooling, higher strength levels are achieved. It can also be used to process materials that are considered difficult to weld (e.g. cast iron).

Laser metal deposition with green laser radiation

Laser metal deposition using green laser radiation is particularly effective for highly reflective materials such as pure copper, copper alloys, bronzes, aluminum alloys or precious metal alloys. Compared to the infrared wavelength range, the green wavelength has a significantly higher absorption; a much higher absorption can be achieved for pure copper and copper alloys. Compared to infrared wavelengths, additive manufacturing with green wavelengths enables higher densities and a near-net-shape construction with significantly lower laser power when processing copper alloys.

How do laser metal deposition and high-speed laser metal deposition work?

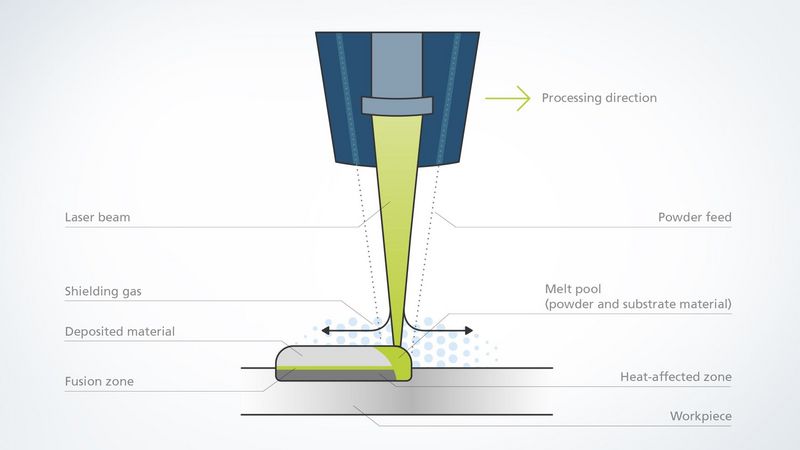

Process diagram - laser metal deposition
Laser metal deposition (LMD)

In conventional laser metal deposition, the laser beam heats up the workpiece locally, creating a weld pool. Fine metal powder is sprayed directly into the weld pool from a nozzle in the processing optics. This fine metal powder melts there and combines with the base material. A layer of approx. 0.2 to 1 millimeter thickness remains. In this way, beads form that are welded to one another, which then form structures on existing base bodies or entire components. If required, many layers can be built up one on top of the other. Laser metal deposition can create high build or volume rates of multiple cm³/min on 3D surfaces, with feed rates of 500 mm/min and as high as multiple meters/minute. To apply lines, areas, and shapes, the automatically controlled processing optics move over the workpiece. An intelligent sensor system ensures that the layer thickness is even everywhere at all times.

High speed laser metal deposition (HS-LMD)

With high-speed laser metal deposition, the powder particles are already heated to almost melting temperature above the substrate surface. As a result, less time is required for melting the powder particles. The result: significantly increased processing speeds. Due to the lower heat input, high-speed laser metal deposition also enables the coating of very heat-sensitive materials such as aluminum or cast iron alloys. The HS-LMD process can createhigh surface rates up to 1500 cm²/min on rotationally symmetrical surfaces. This achieves feed rates of hundreds of meters/minute.
