The TruBend Series 1000 Basic Edition focuses on the essentials: Benefit from an economical solution with TRUMPF quality. The 1000 Series impresses with its simple control and reliable operation, while also delivering high levels of precision and meeting appropriate safety standards. Thanks to its robust system design, high-quality components and intuitive programming system, the TruBend Series 1000 Basic Edition is your perfect introduction to TRUMPF bending technology.
The TruBend 1000 Basic Edition is equipped with its very own TRUMPF control system, which enables simple and fast numerical and graphical programming. Meaning you can program faster than ever before.
The automatic tool clamp allows for quick tool changes.
The 4-axis backgauge ensures correct sheet positioning with high reproducibility and allows easy bending of complex parts.
Embedded in the TRUMPF Eco System, the BendGuard Basic provides optimum safety. And the TRUMPF Remote Service provides high machine availability.
The high flexibility of the TruBend Series 1000 Basic Edition provides the right solution for many applications – from simple to complex components.
Thanks to 225 tons of press force, you can bend even thick material with high precision.
Produce long profiles quickly and easily
|
TruBend 1225
|
|
|---|---|
| Press force | 2250 kN |
| Bending length | 4100 mm |
| Width between columns | 3700 mm |
| Throat depth | 410 mm |
| User interface | Touchscreen |
| Maximum speed Y axis, operation | 10 mm/s |
| Dimensions, weights | |
| Length | 4780 mm |
| Width | 2080 mm |
| Height | 2900 mm |
| Weight | 15000 kg |
The technical data of all product versions as a download.
Get virtual support from our highly qualified service engineers, who will quickly help you to find a solution to your specific problem.
The support bracket, which can be moved on rails, enables convenient positioning of the bending part.
A package of upper and lower tools is included with all three variants - simply insert the sheet and go!
Program your bending machines intelligently using TruTops Boost, the all-in-one solution for 3D design. Numerous automated processes save you time-consuming routine processes. You also profit from a comprehensive ruleset with the bundled technical expertise of TRUMPF.
Program faster than ever before: With TecZone Bend you can combine bend programming in the office with shop floor programming at the TruBend bending machine. A program suggestion is automatically created in a few seconds based on 2D and 3D data – including NC program.
The extensive range of TruTops software supports you throughout the entire production process. Control your operational workflow in a simple and targeted manner, from managing your customer orders and purchasing processes to delivery of the produced parts. Through the direct coupling with the machine control, you can keep a constant eye on the status of your orders.

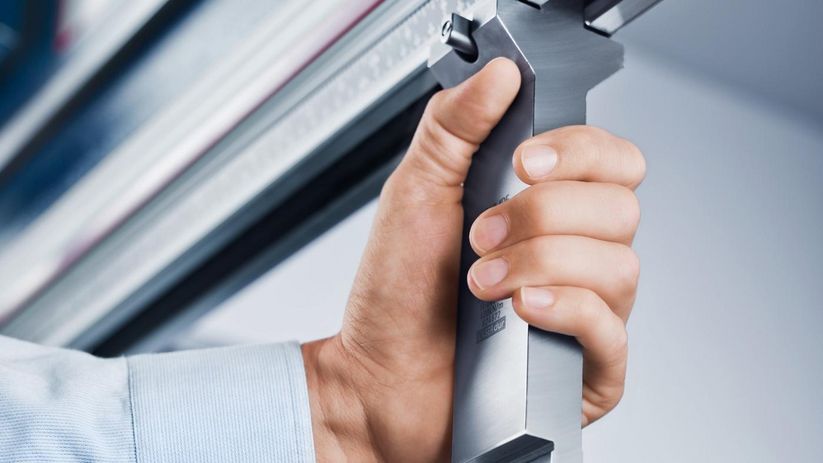

You can choose between more than 150 upper and lower tool types for your personal range. You can order tools individually or as a set.
For tools up to 12 inches long, lightweight tools with a weight saving of more than 30% are equipped with the Safety-Click as standard. This reduces the setup time and relieves the strain on the operator.
During the processing of galvanized sheets, even after just a few bends, there may be zinc deposits on the die, resulting in cold welding. This causes imprints on the component and imprecision. This can be avoided with the coated LASERdur ZN TRUMPF bending tools. They combine a high level of surface hardness with excellent sliding properties, are corrosion-resistant, and do not need to be cleaned.
For specific requirements, TRUMPF will develop your own personal tool solution. To guarantee the quality of your parts, we test the tools in advance with your specific material and create initial sample parts.
