Laser-marked plastic part from the medical technology industry

Laser marking plastic

Lasers mark plastic components not only permanently and flexibly, but also very environmentally and material friendly. This is due to the fact that - compared to conventional marking procedures - no templates or consumables such as ink are required. Laser markings on plastic surfaces are always smudge and abrasion resistant. The laser marking of plastics basically involves three separate processes: changes in color, alterations to surfaces and the ablation of layers.

Process for the laser marking of plastic parts

The key to laser marking plastics is achieving sufficient absorption of the laser beam into the material. In metals, most of the beam is reflected, while in plastics, transmission, diffuse reflection, and absorption are more important. The low heat conductivity in plastics means low energy losses during marking. Plastics can therefore be marked much faster than metals. Absorption by the macromolecular structure of plastics is usually in the ultraviolet and far infrared range. In additives such as carbon black or dyes, absorption occurs at varying wavelength spectrums. Since lasers with different wavelengths are available, the wavelength can be optimized for the respective material.

Which plastics can be laser marked?

TRUMPF marking lasers: overview of markable plastics

Short-pulse lasers achieve good results with a range of marking types depending on the plastic, the laser wavelength and additives used. To achieve high legibility and marking quality, it is recommended to mix laser-sensitive additives into some industrial plastics. The properties of the plastics remain largely unaffected.

Laser wavelength plays an important role in the marking of plastics, depending on the application. Using frequency-doubled (532 nm, green) or tripled (355 nm, UV) solid-state lasers extends the range of plastics that are easy to mark. These lasers often achieve better results than standard systems with wavelengths of 1,064 or 1,030 nm.

What is important when marking plastics?

Plastics are materials that pose several challenges to many marking systems. The main objective of marking systems is the long-term legibility of markings, but ink, for example, has inherent limitations. Moreover, not all plastics are the same. The varying properties and additives in plastics often require individualized marking solutions. Lasers are much more flexible in coping with such challenges, tolerating even minor surface soiling, and able to begin marking immediately without having to first create templates, which is required, for example, by screen and pad printing processes.

Find your perfect marking laser now

Use the TruMark product finder to discover which marking laser is best suited to your application!

Start product finder

Types of laser marking for plastics

Color change

Color change in the laser marking of plastics includes discoloration, bleaching and carbonization. Color molecules can be selectively bleached out or their color changed. Laser beam energy is used to break down or change the structure of individual molecules, such as color pigments. Surfaces remain largely unaffected and smooth. In carbonization, carbon-containing plastics burn or carbonize on the surface. The process is typically used for light-colored plastics.

Ablation

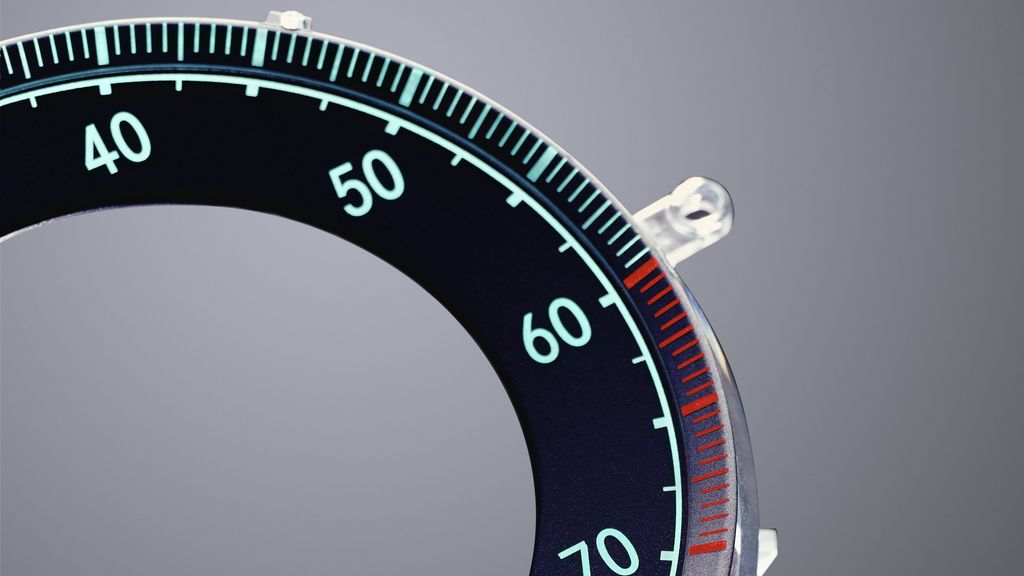

Multi-layer or coated plastics can be laser-marked by ablating a thin top layer. Contrast is created by the color of the base material or base coating. This removes coatings or special layers in laser marking film. Buttons in vehicle interiors are an example of markings achieved by layer ablation. In daylight, the symbols are white and at night they are backlit. For day and night designs, lasers with high pulse-to-pulse stability are available to ensure precise and homogeneous layer ablation.

Foaming

Foaming or melting are surface-altering processes. For laser marking plastics, the laser selectively melts the matrix material, creating gas bubbles which become trapped during cooling. The resulting raised markings are about 20 to 40 μm high and relatively wide. The light is diffusely reflected, and the marking on dark plastic appears bright. Foaming is therefore usually used for black and dark colors.

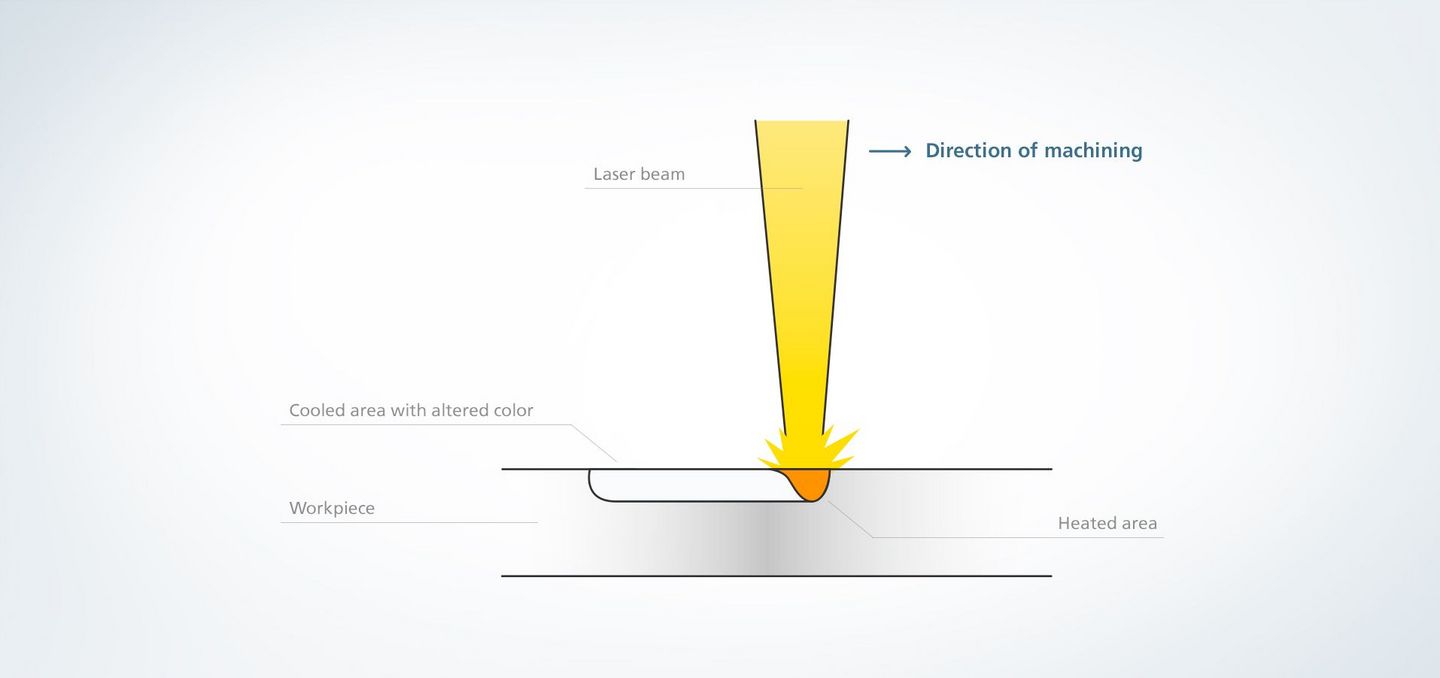

Color change: process diagram

TRUMPF laser marking annealing application

The laser dose alters selected molecules and thus brings about a change in color.

How can flame-retardant or flame-resistant plastics be laser marked?

TRUMPF marking laser application in flame-retardant plastics

Especially when processing flame-retardant plastics, it is important that the material and wavelength are optimally matched to each other. Here, the use of a UV laser is recommended. Dark gray markings can then be made on light materials. Discoloration is caused by the break-up of chemical compounds. As the material does not burn or carbonize, it is referred to as "cold marking" with high surface qualities.

Foaming: process diagram

TRUMPF marking laser application foaming scheme

In foaming, markings appear raised

Marking plastic with lasers: your advantages

Flexible

Lasers can be precisely adjusted to the respective plastic using a range of optional wavelengths, powers, and parameters.

Gentle

Cold and non-contact laser marking means that the component surface remains virtually unaffected.

High quality

The laser achieves even the most intricate markings which are high-contrast, clean, and without any smudges.

Durable

Laser inscriptions on plastics neither fade nor rub off so remain perfectly legible even after years.

Application examples of plastic marking

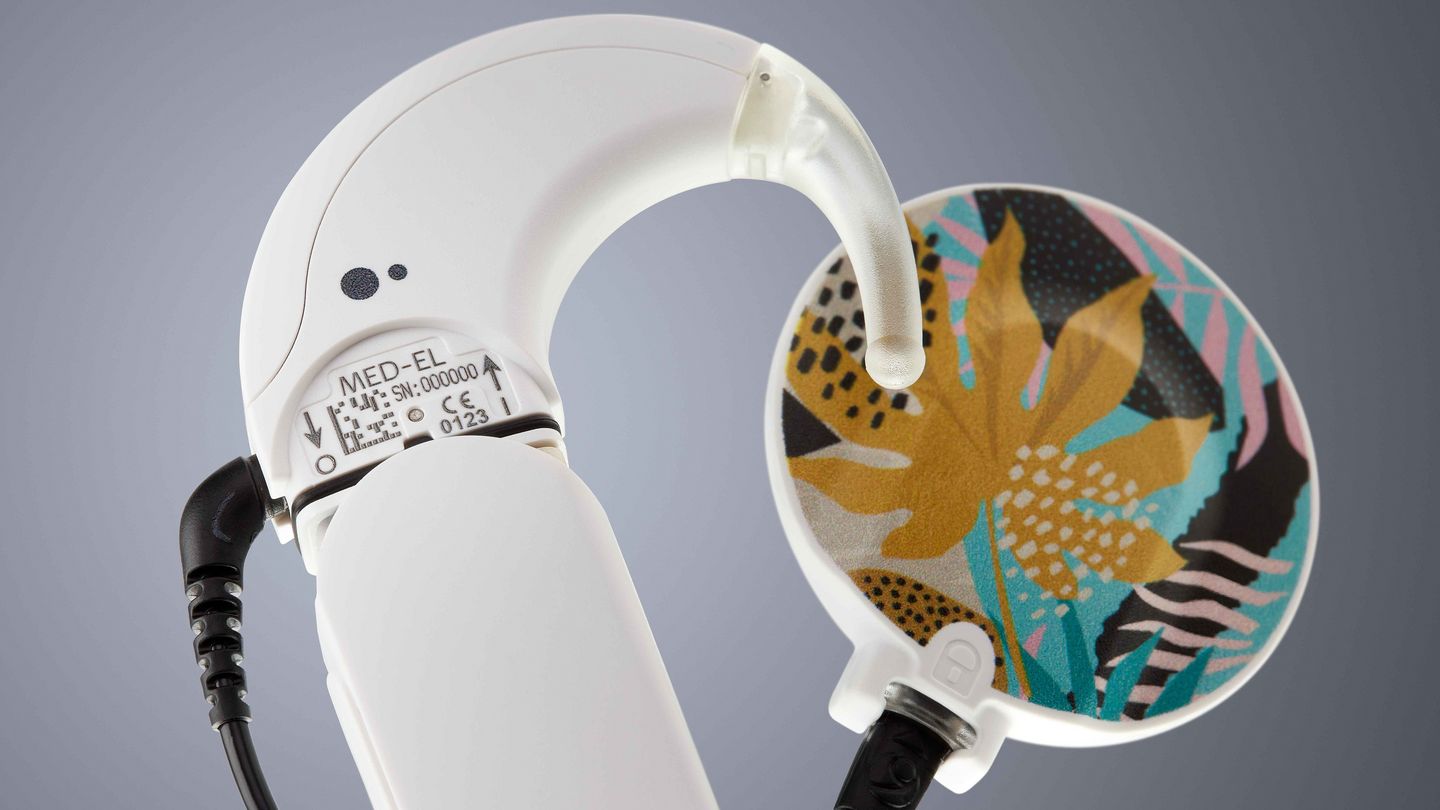

Speech processor

Speech processor with antenna (MED-EL Elektromedizin Geräte Gesellschaft m.b.H.) laser marked with the TruMark Series 3000:

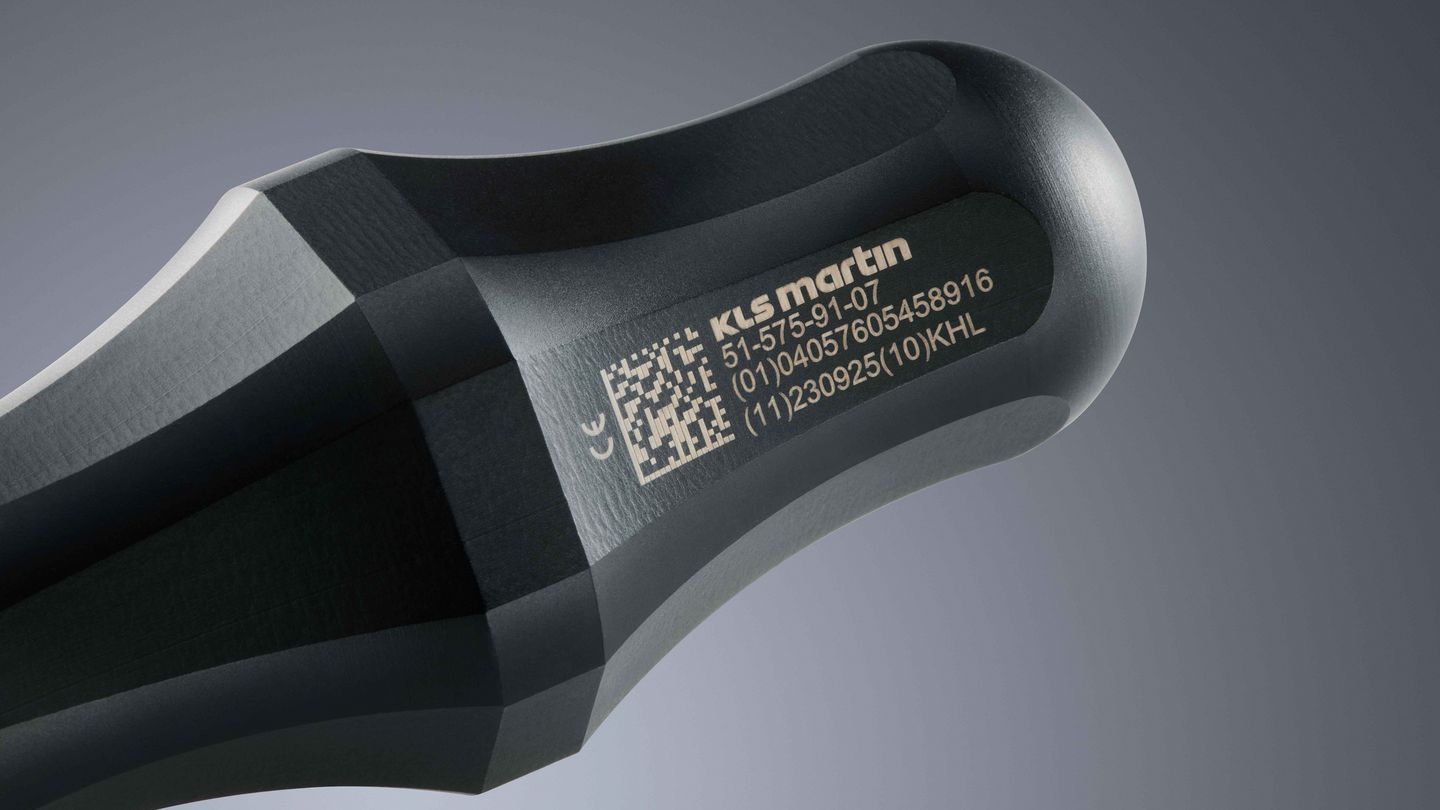

Screwdriver handle

Plastic screwdriver handle (KLS Martin) marked with the ultra-short pulse laser TruMicro Mark 2030:

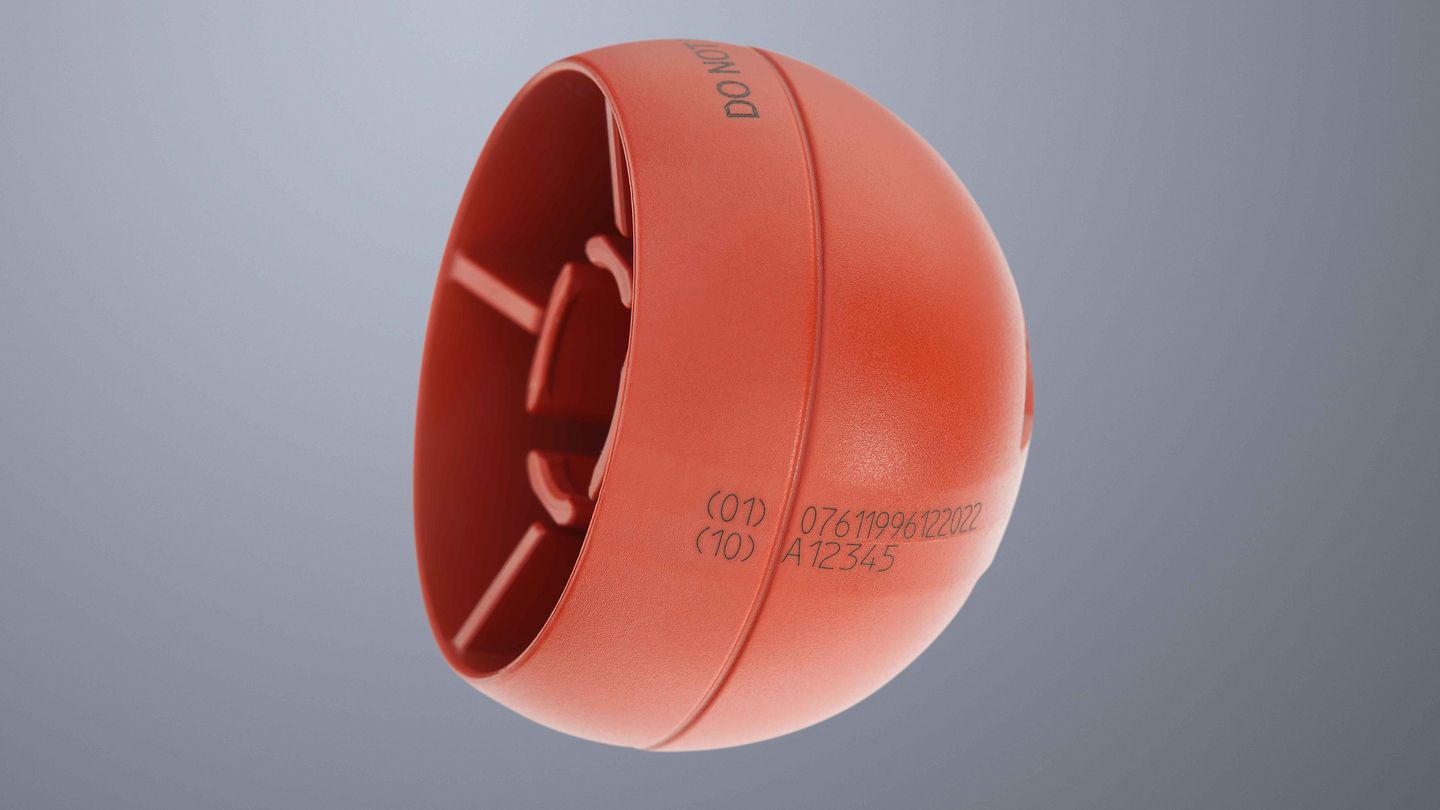

Laser-marked test ball joint of a hip implant

Test ball joint for hip implant

3D plastic marking of a test ball joint (SAMAPLAST AG) for a hip implant with the TruMark 6030

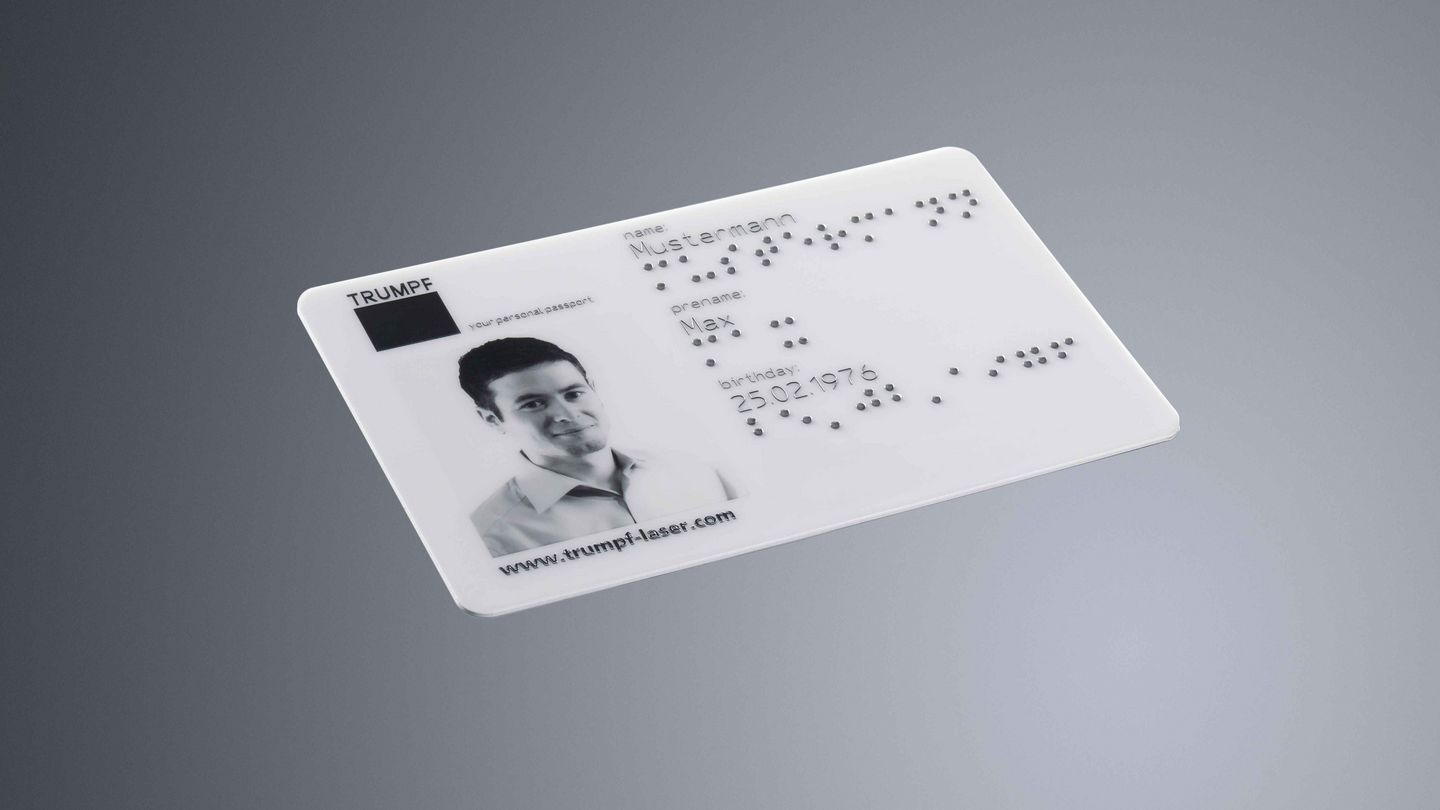

ID labeling

Color changing and foaming enable the flexible creation of highly legible, durable, and high-contrast labels and images, e.g. ID cards.

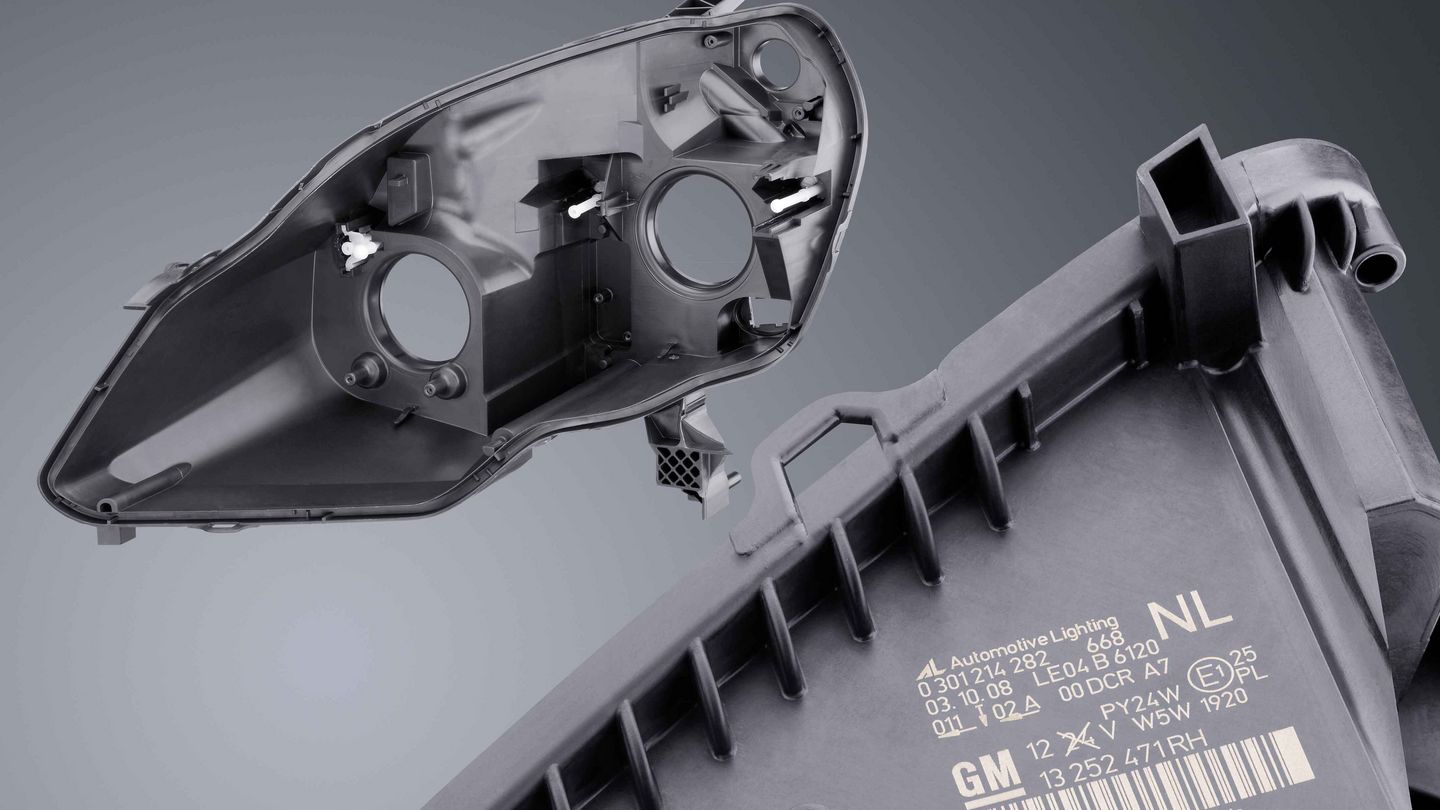

TRUMPF laser marking on plastic automotive components

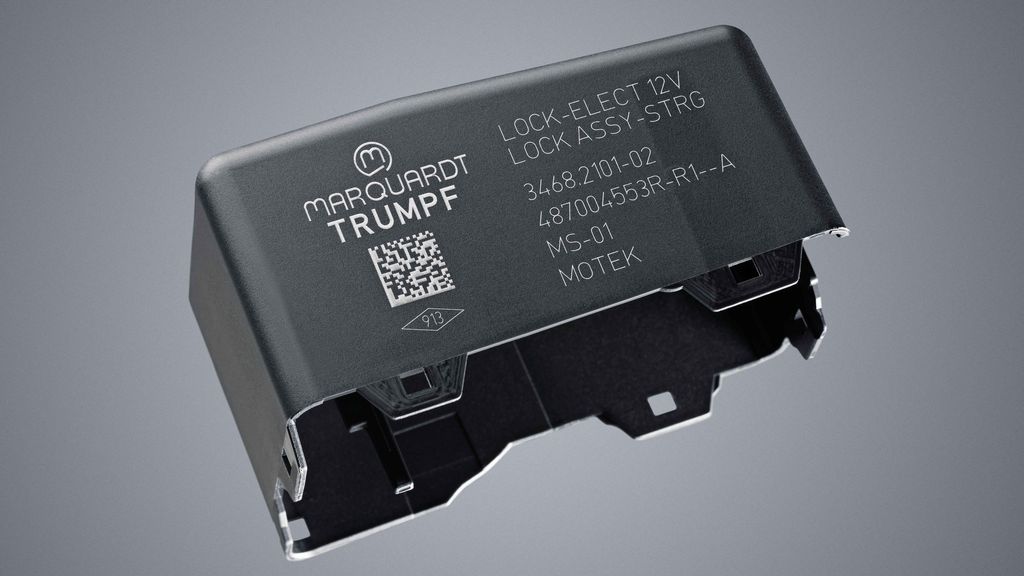

Product identification

The flexible laser tool applies high-contrast and permanently legible, high-resolution product markings even in difficult to access areas.

To the overview

The success story of our customer Samaplast AG

Stefan Schär, Head of Finishing and Logistics, Samaplast AG

The laser system helps us to process the enormous range of materials. All of the relevant parameters are saved, new part geometries are imported with STEP files to easily create the programs

Read story

Find out now about the most suitable solution to meet your needs for the laser marking of plastics.

UV marking lasers, fiber lasers and solid-state lasers in the infrared wavelength range are ideally suited as beam sources for laser marking plastics.

White paper: Manual: Laser marking in brief

Discover the comprehensive manual "Laser marking in brief" and find out about the technical background of the processes and laser systems as well as a guideline on practical marking. Download it here!

pdf

Manual: Laser marking in brief

Just fill out the form below and receive exclusive background information and more details in our white paper.

Form of address

First name *

Last name *

Company *

City

Federal state

Country/region *

Phone

Email *

I hereby consent to the TRUMPF Group processing my previously entered data for purposes of market research, advertising and analysis and to its contacting me by post, email or phone for the purpose of informing me of its current offers and services. I can at any time revoke this consent, even partially, by contacting info@us.trumpf.com

Further information on data protection at TRUMPF can be found in our privacy statement. *

You may also find these topics interesting

Marking systems

Regardless of whether you are producing small or large-volume components or handling small or large lot sizes – TRUMPF's laser marking systems ensure the best possible ergonomics and safety at all times.

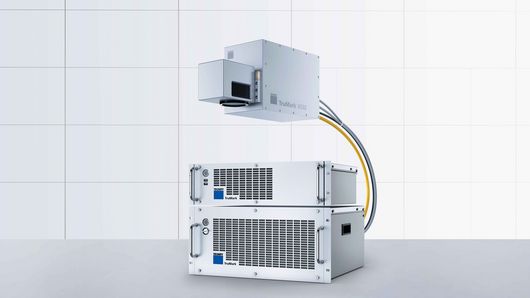

TruMark 6030

With the TruMark 6030 marking laser, you can make the most of the advantages offered by the next generation of marking lasers by TRUMPF. The laser's high level of performance and excellent beam quality guarantee that you will achieve brilliant laser markings for applications in all industries.

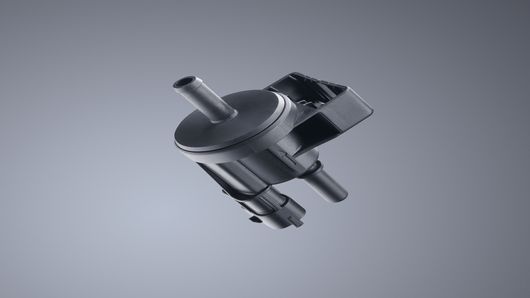

Plastic-welded component processed with the TRUMPF laser
