3D printing amorphous metals

The new super-material in additive manufacturing

Extremely strong and yet highly elastic: amorphous metals, also called metallic glasses, are THE new super material in 3D printing for numerous high-tech applications. Its fascinating properties have enormous potential for innovative components in the medical technology, aerospace, robotics, e-mobility or lifestyle sectors.*

What are amorphous metals?

Amorphous metals are also called metallic glasses and are quite extraordinary all-round talents. Although they are extremely strong, they are also highly elastic, making the unique nature of metallic glasses possible. Compared to crystalline materials, amorphous metals do not have an ordered lattice structure. This is created by the melt's high cooling rate. This prevents an even distribution of the atoms. The result: an amorphous, in other words, non-crystalline solid body where the atoms remain in an almost disordered state.

What are the benefits of metallic glasses?

A high level of hardness and strength with concurrent extreme elasticity: this unique combination yields countless benefits in the production of amorphous components.

Isotropic behavior

Amorphous components have the same material properties in all directions. This offers many advantages, for example, in additive manufacturing. The build volume can be utilized in the best possible way in combination with the component's orientation.

Biocompatibility

3D-printed amorphous components are biocompatible, making them predestined for many medical technical applications. Amorphous implants can be customised to fit the patient's body shape.

Elasticity

Amorphous metals have a high yield strength combined with an elastic elongation of almost 2%. This provides many benefits in the production of implants, sensors or flexure joints as absorption is significantly improved.

Lightweight design

Thanks to the high level of strength, it is possible to make amorphous metallic components thinner, saving more material, and making them lighter. This is particularly important in the robotics or medical technology sectors, as well as in aerospace and e-mobility.

Application in very cold environments

Amorphous metals have low temperature ductility, which means that they are excellent for use in applications with extremely low temperatures and they retain their properties. This makes this material class perfect for the aerospace sector.

Wear resistance

Amorphous metals have a very high level of hardness and therefore little abrasion, comparable with ceramic. This property is particularly important for heavily stressed components in tool and mold making as well as for lifestyle products such as high-quality watches.

Amorphous metals – 3 questions about the new super material

How can amorphous metals be 3D printed?

Together, TRUMPF and Heraeus AMLOY have developed a procedure which works with a very fine focus and extremely small melt volume. The heat dissipates quickly. This equates to the critical cooling time of 200 kelvin per second: a customized and amorphously solidified implant rises out of the powder bed.

What are the advantages of amorphous metals for implants?

Since metallic glasses do not have lattice structures, they behave completely differently to other metals. They are simultaneously extremely strong, highly elastic and very wear-resistant. Implants made of amorphous metals can withstand the enormous stresses and strains in the human body very well. This does not only include knocks or jolts. Biting and chewing regularly subjects the jawbone to constant stress; a rib cage has to withstand around eight million breaths per year.

Why are metallic glasses particularly suited for 3D printing bones?

Amorphous alloys have an elasticity module which is similar to that of human bones. This provides enormous benefits for the healing process and the resilience of the previously weak point in the body. At the same time, alloys are resistant to corrosion and certified in terms of biocompatibility.

Amorphous metal alloys – a look at four characteristics

Heraeus AMLOY has developed ground-breaking alloys which are exceptionally suitable for the production of innovative implants, among other things. Zirconium-based alloys such as Amloy-ZR01 and Amloy-ZR02 are available even now. The latter is already a certified material in terms of biocompatibility in accordance with ISO 10993-5 and ISO 10993-12. Furthermore, titanium is considered a material for medical components such as bone implants or pacemakers. The current research into titanium alloys for applications in medical technology is very promising. Whether titanium or zirconium – amorphous alloys impress with different properties and are therefore particularly suitable for specific applications.

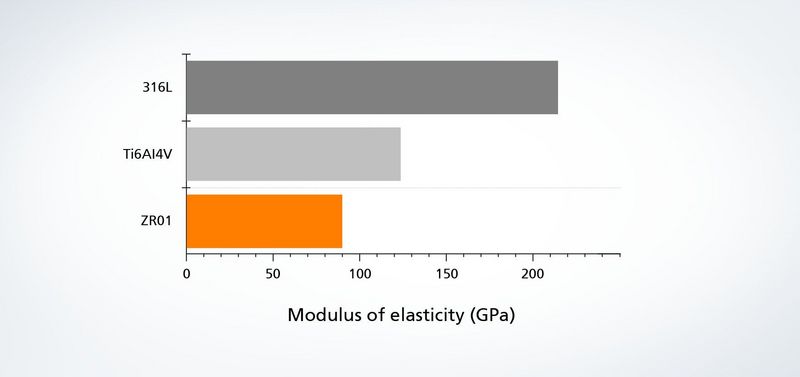

Elasticity module

Amorphous metals have a low elasticity module (E-module 87 GPa for Amloy-ZR01 and 89 GPa for Amloy-ZR02). As this is very comparable with human bones, the alloys are suitable for medical applications.

Hardness

Metallic glasses are characterized by very high hardness up to 540 HV for Amloy-ZR02. This means they have very good wear resistance which can be exploited in the production of high-quality lifestyle watches.

Yield strength

Amorphous metals have a very high yield strength (> 1,300 MPa). Combined with a lower density than steel, this makes them perfect for applications in lightweight construction.

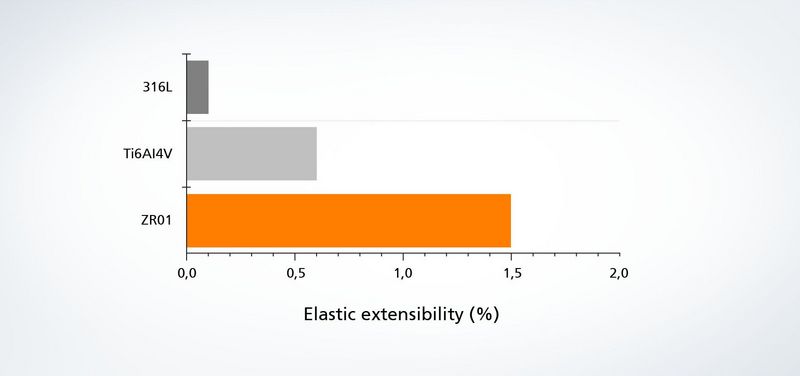

Elastic flexibility

The very high elastic flexibility (> 1.5 %) of amorphous metals ensures that components absorb a lot of energy in the elastic range, transmitting it again without deforming. This makes these alloys particularly suitable for applications under elastic stress.

White paper

PDF - 3 MB

Find out all the details on the production of amorphous components now

How does additive manufacturing make it possible to process amorphous metals? What amorphous alloys and material constants are available? You will find the answers to these and many other questions – corroborated with technical data – in our collective white paper by TRUMPF and Heraeus AMLOY.

Which amorphous applications are available?

From a lifestyle watch to medical technology to lightweight design: amorphous metals open up new application options for a multitude of sectors and industries. One of the main great advantages is the combination of 3D printing and metallic glasses. Find out all about it!

Find out more

Which amorphous applications are available?

From a lifestyle watch to medical technology to lightweight design: amorphous metals open up new application options for many sectors and industries. Thanks to the combination of 3D printing and metallic glasses, one thing is certain: the material can be optimally processed, generating the finest structures with smooth surfaces. Applications requiring very high corrosion resistance and wear resistance can be ideally implemented.

Medical technology

Medical technology gets just what it wants with amorphous metals: the perfect material for the production of long-lasting scalpels or minimally invasive instruments. But even in the human body, amorphous metals will play an important role in the future – as implants.

Wrist joint implant: radius plate

The 3D printer produces customized amorphous implants which have the strength required yet are flexible enough to synchronize with and absorb movements. Furthermore, the porous surface structure produced in additive manufacturing facilitates bone on-growth. Compared to other materials, the surface quality of 1 micrometer immediately after printing is significantly better. A real advantage if the implant is to be removed again. (Image source: Heraeus AMLOY)

Lifestyle products

Polishable high-quality surfaces and scratch resistance give lifestyle products the "wow" factor. This makes them essential for high-grade entertainment electronics, watches and jewelry.

Guitar bridge

Optimum transmission is crucial for guitar bridges. As amorphous metals are very elastic, they transmit a note more directly and hold it for longer. The high strength of amorphous metals also opens up new freedom in design: customized, bionic structures can be 3D printed, improving the sound even more. (Image source: Heraeus AMLOY)

Watch case

The Swedish company Oskar Pascal has produced the first watch case in the world made of ZR01 metal, which is three times stronger than stainless steel. The high surface quality satisfies the customers' requirements and contributes significantly to the watch owner's sentimental connection to the lifestyle watch. Supercooling achieves a much higher level of anticorrosive agent compared to conventional cast metal, as well as outstanding fracture toughness. (Image source: Oskar Pascal)

Headphones

The housing of the IE 600 in-ear headphones from Sennheiser is 3D printed with a zirconium alloy and is three times harder and more resistant to bending than heavy duty steel. The result meets the highest demands in terms of appearance and function: The semi-matte surface is not only visually appealing, but also extremely durable against corrosion and scratches. (Image source: Sennheiser)

General industries

Thanks to the additive method, many industrially manufactured components can be produced "as a whole". This means that the components do not have to be manufactured individually and subsequently assembled.

Amorphous expansion sleeve

The expansion sleeve can be greatly improved by 3D printing of amorphous metals. As the amorphous alloys achieve a much higher elasticity than conventional materials, it can deform much more easily. (Image source: Heraeus AMLOY)

These machines enable amorphous printing – even in series

The reason 3D printing and amorphous metals are a real dream team: read here how the TruPrint systems from TRUMPF and the ultra-pure, specially optimized powders from Heraeus AMLOY work together perfectly.

Find out more

These machines enable amorphous printing – even in series

A real dream team: 3D printing and amorphous metals. Or more precisely: the TruPrint systems from TRUMPF and the ultra-pure, specially optimized powders from Heraeus AMLOY. This is because the TruPrint 1000 and 2000 are particularly suited for printing amorphous metals. The small beam diameters generate the highest surface qualities. This simplifies the refinishing process of the applications or even renders them unnecessary. Excess powder can be prepared "inertly", that is, using shielding gas. This protects the material from harmful effects such as oxygen which is quick to react with metallic glasses. The laser generates a small weld pool with a beam diameter of 55 µm. The heat dissipates quickly and the critical cooling time of 200 Kelvin per second can be maintained. This means that the metal cannot crystallize. In the TruPrint 2000, two 300-watt lasers scan the entire build volume in parallel. This means amorphous components can be manufactured productively in series, and to a high quality standard. Thanks to Condition Monitoring, Powder Bed Monitoring and Melt Pool Monitoring, errors in the process can be detected early on. A perfected process.

Ask the Expert: our material specialist Christian Schauer explains

Christian Schauer introduces the new material group metallic glasses as well as their unique properties and applications.

White paper

PDF - 3 MB

Find out all the details on the production of amorphous components now

PDF - 782 KB

Amorphous alloy headphone housing that lasts forever

Heraeus AMLOY and Sennheiser demonstrate what 3D printing, high-performance audio technology and the new amorphous alloy material class have in common. The shared path from the first prototypes to quality standards and validation iterations to the final state-of-the-art production process in additive series production of the IE 600 amorphous metal housing.

_{Further information about amorphous metals can be found at: www.heraeus-amloy.com}

You may also find these topics interesting

Additive Manufacturing Showroom

The Additive Manufacturing Showroom on the TRUMPF Campus in Ditzingen, Germany, offers a live insight into additive manufacturing using laser metal fusion and laser metal deposition, as well as clear industry applications and success stories from our customers – with direct advice from our experts included.

TruPrint 1000

If you need to produce small series or prototypes using laser metal fusion, our compact TruPrint 1000 machine for 3D printing metal components is the ideal choice for you.

TruPrint 2000

Are you looking for a profitable machine concept with outstanding printing results? The TruPrint 2000 meets these requirements exactly. With its full-field multilaser, consisting of 2 x 300 W (optionally 2 x 500 W) lasers, a beam diameter of 80 µm and a short recoating time, it delivers excellent results.
