The universal frame solution
The LiftMaster Linear automatically loads and unloads sheets, via its linear axis, to as many as three machines on a maximum of six tool stations. At the tool stations you can perfectly integrate cart systems, machines, loading stations, or unloading platforms. The versatile LiftMaster Linear can, therefore, master almost any application. The Sort or Scrap Skeleton Separation upgrades offer an additional productivity boost. They separate finished parts from the scrap skeleton.
The maximum sheet size is 240 x 80 inches.
If you wish, you can integrate up to three machines or a store – in many installation versions.
In conjunction with the SortMaster, the LiftMaster Linear evolves into a fully automated processing cell that offers total process reliability.
Produce in a single stroke and at under a minute per sheet.
|
LiftMaster Linear large format
Compare product
|
LiftMaster Linear max format
Compare product
|
LiftMaster Linear oversize format
Compare product
|
LiftMaster Linear oversize format
Compare product
|
|
|---|---|---|---|---|
| Loading | ||||
| Maximum sheet size | 3000 mm x 1500 mm | 4000 mm x 2000 mm | 6000 mm x 2000 mm | 6000 mm x 2500 mm |
| Minimum sheet size | 1000 mm x 1000 mm | 1000 mm x 1000 mm | 1000 mm x 1000 mm | 1000 mm x 1000 mm |
| Maximum sheet thickness | 30 mm | 30 mm | 25 mm | 25 mm |
| Maximum sheet weight | 1100 kg | 1900 kg | 2360 kg | 2960 kg |
| Unloading | ||||
| Maximum sheet size | 3000 mm x 1500 mm | 4000 mm x 2000 mm | 6000 mm x 2000 mm | 6000 mm x 2500 mm |
| Minimum sheet size | 150 mm x 150 mm | 150 mm x 150 mm | 150 mm x 150 mm | 150 mm x 150 mm |
| Maximum sheet thickness | 30 mm | 30 mm | 20 mm | 20 mm |
| Max. sheet thickness (belt prong) | 15 mm | 15 mm | - | - |
| Maximum sheet weight | 1100 kg | 1600 kg | 2400 kg | 2400 kg |
|
LiftMaster Linear large format
|
LiftMaster Linear max format
|
LiftMaster Linear oversize format
|
LiftMaster Linear oversize format
|
|
|---|---|---|---|---|
| Loading | ||||
| Maximum sheet size | 3000 mm x 1500 mm | 4000 mm x 2000 mm | 6000 mm x 2000 mm | 6000 mm x 2500 mm |
| Minimum sheet size | 1000 mm x 1000 mm | 1000 mm x 1000 mm | 1000 mm x 1000 mm | 1000 mm x 1000 mm |
| Maximum sheet thickness | 30 mm | 30 mm | 25 mm | 25 mm |
| Maximum sheet weight | 1100 kg | 1900 kg | 2360 kg | 2960 kg |
| Unloading | ||||
| Maximum sheet size | 3000 mm x 1500 mm | 4000 mm x 2000 mm | 6000 mm x 2000 mm | 6000 mm x 2500 mm |
| Minimum sheet size | 150 mm x 150 mm | 150 mm x 150 mm | 150 mm x 150 mm | 150 mm x 150 mm |
| Maximum sheet thickness | 30 mm | 30 mm | 20 mm | 20 mm |
| Max. sheet thickness (belt prong) | 15 mm | 15 mm | - | - |
| Maximum sheet weight | 1100 kg | 1600 kg | 2400 kg | 2400 kg |
The technical data of all product versions as a download.
With the LiftMaster Linear you can load and unload up to three machines simultaneously. The software, TruTops FMC, is used to control and manage all components during multiple-machine operation.

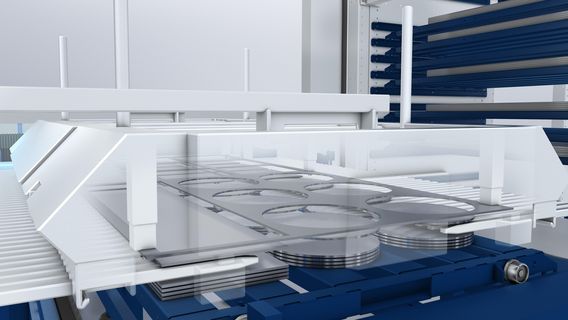

The LiftMaster Linear quickly separates finished parts from the scrap skeleton. For this purpose, the suction frame is additionally equipped with spreadable grippers, which pick up the scrap skeleton in the unloading rake. The finished parts remain in the closed unloading rake and can be placed down in the unloading area. The suction frame then places the scrap skeleton.
The unloading rake takes the finished, processed sheet from the pallet changer and places it in the unloading area. The suction frame is fitted with individually controllable suction cups that pick up the unprocessed sheets from the loading area and place them on the pallet changer.

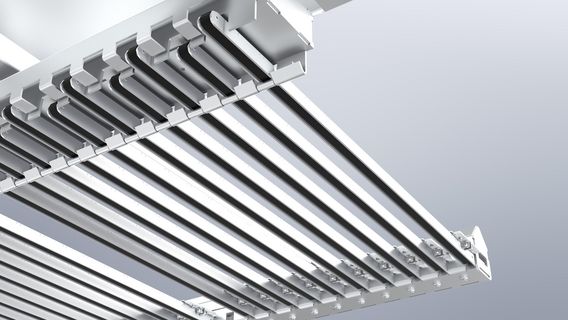

So-called belt prongs enable low-scratch part unloading with high positioning accuracy.
The SortMaster takes out, sorts, and stacks cut finished parts.
TruLaser 5060 with LiftMaster Linear and dual carts

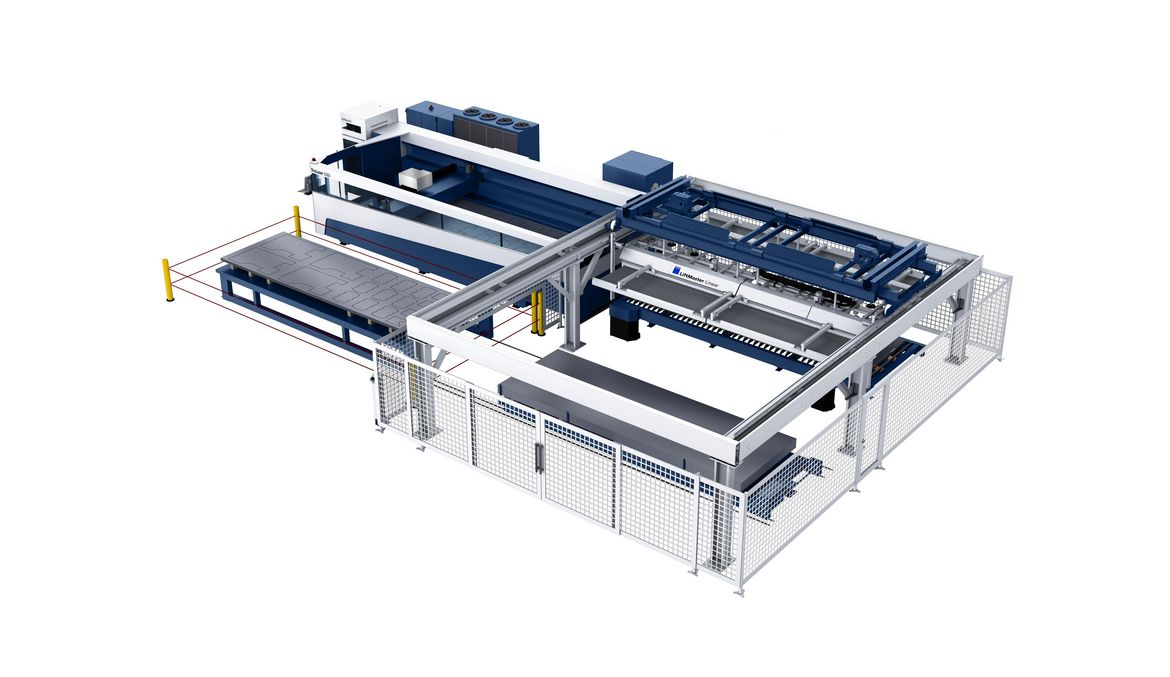

Multiple-machine connection with three TruLaser 5060 machines and a LiftMaster Linear
TruLaser 5030 fiber with LiftMaster Linear
