Pulsed laser

TruPulse

Pulsed peak power in the multi-kilowatt range for spot welding and seam welding

REQUEST OFFER

Pulsed laser

TruPulse

The minimal temperature effects enable welding of pacemakers

REQUEST OFFER

Sophisticated power pack

The tried-and-tested pulsed solid-state lasers in the TruPulse series enable short, high-energy pulses at high power. The pulse power of several kilowatts for a few milliseconds means that spot welding and seam welding are now also possible in places where other methods fail. Thermally sensitive applications in particular benefit from the advantages of pulsed solid-state lasers. With their modular layout, the lasers can be adapted to your individual manufacturing task. The TruPulse series has been technically optimized over decades, making the system highly reliable.

Flexible

Individually adaptable lasers due to the broad product portfolio and the modular layout of the TruPulse

100% consistent power output

With our real time laser power control, the exact power you select is the power at the workpiece.

Accurate pulse-to-pulse stability

The laser compares the pulse shape you have chosen with the actual pulse shape in a 10 μs cycle.

Improved average power

With the burst function you can temporarily increase the average power several times over.

Integrated know-how

The WeldAssist option provides suggested values for all of the process parameters depending on the material and welding depth.

Efficient spot and seam welding with TruPulse

Image of the technology inside the TRUMPF pulsed lasers

TruPulse integrated beam guidance

Due to its integrated beam guidance, the TruPulse can be perfectly adapted to your application. With up to six pluggable laser outlets and a flexibly configurable beam distribution, the laser beam can be split, switched over, disabled, and measured. In this way, it is possible to use the solid-state laser at one or more processing stations, with a time or energy split. This enables multiple welding processes to be performed at the same time or with a time delay. The modular layout enables subsequent repairs or extensions in the field.

Finely graduated

In terms of power, energy, or focusability the TruPulse series covers the full spectrum of parameters for laser precision welding. The parameters for pulse energy and pulse duration are variable – so the laser device can be accurately designed for your application and used with flexibility during operation. With a maximum pulse power of up to 10 kW, pulse durations ranging from 0.2 to 50 ms and pulse energies of up to 120 J, the TruPulse lasers are perfect for many applications – for both manual and automated tasks.

Burst function

The pulse energy and average power normally limit the pulse frequency of a laser. The burst function enables the frequency and the average power to be significantly increased for a short period at the same pulse energy level. You can therefore minimize the welding time per processing cycle and increase your productivity.

Endoscopic instrument

High precision is vital for medical instruments. The TruPulse is perfectly suited to these applications. The weld seams on this endoscope are barely visible.

Electronic plug

Electronic plug contacts are often reshaped and then fixed in place with the laser. The reliability of the TruPulse lasers ensures highly productive 3-shift operation with reject rates in the ppm range.

Sensor module

The low heat input resulting from the pulsed laser process protects the sensitive electronics of the power sensor module, which was seam welded with the TruPulse.

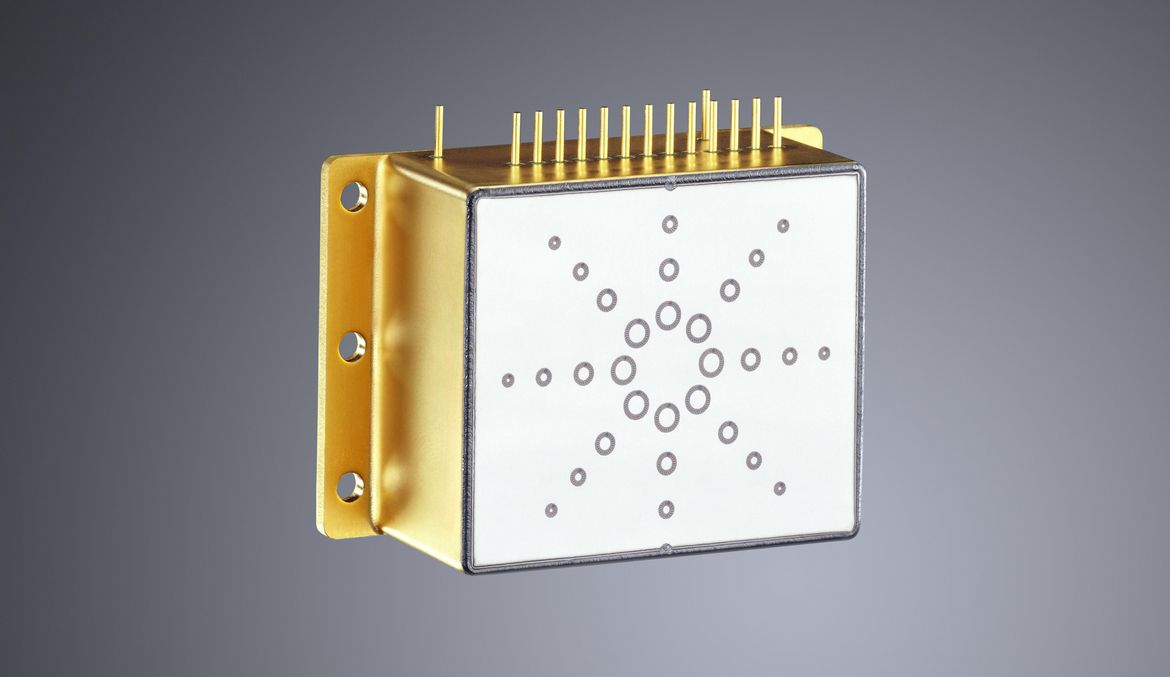

Opto-electronic component

The cover of an opto-electronic component is attached to a housing via pulsed seam welding.

Plug

With the aid of the burst mode functionality, the processing time for welding the plug is reduced by 70%. This is implemented by means of fast beam positioning via PFO scanner optics, paired with the capability of the TruPulse laser to emit multi-kW pulses with an increased frequency for short bursts.

Cancel

Compare products

Starting product Your starting product

1st comparison model 2nd comparison model (optional)

Compare now

	TruPulse 21 Compare product	TruPulse 33 Compare product	TruPulse 44 Compare product	TruPulse 62 Compare product	TruPulse 74 Compare product	TruPulse 103 Compare product	TruPulse 106 Compare product	TruPulse 124 Compare product	TruPulse 156 Compare product	TruPulse 203 Compare product	TruPulse 304 Compare product	TruPulse 556 Compare product
Laser parameters
Laser power at the workpiece	20 W	30 W	40 W	60 W 65 W	70 W	90 W 95 W	110 W	110 W 125 W 140 W	140 W 150 W 160 W	200 W	300 W	530 W
Max. peak pulse power	1.5 kW	3 kW	3 kW	3 kW 5 kW	4 kW 6 kW	5 kW 6 kW 8 kW	4 kW	6 kW 9 kW	6 kW 10 kW	6 kW 8 kW	10 kW	10 kW
Beam quality	4 mm▪mrad	12 mm▪mrad	16 mm▪mrad	8 mm▪mrad	16 mm▪mrad	12 mm▪mrad	25 mm▪mrad	16 mm▪mrad	25 mm▪mrad	12 mm▪mrad	16 mm▪mrad	25 mm▪mrad
Wavelength	1064 nm	1064 nm	1064 nm	1064 nm	1064 nm	1064 nm	1064 nm	1064 nm	1064 nm	1064 nm	1064 nm	1064 nm
Adjustable pulse duration	0.2 ms - 50 ms	0.2 ms - 50 ms	0.2 ms - 50 ms	0.2 ms - 50 ms	0.3 ms - 50 ms	0.3 ms - 50 ms	0.3 ms - 50 ms	0.3 ms - 50 ms	0.3 ms - 50 ms	0.3 ms - 50 ms	0.3 ms - 50 ms	0.3 ms - 50 ms
Max. pulse repetition frequency	909 Hz	909 Hz	909 Hz	909 Hz	833 Hz	833 Hz	833 Hz	833 Hz	833 Hz	833 Hz	833 Hz	833 Hz
Max. pulse energy	15 J	30 J	30 J	20 J 50 J	30 J 60 J	30 J 60 J 90 J	30 J	30 J 70 J 90 J	30 J 80 J 120 J	55 J 90 J	60 J 90 J	60 J 100 J
Min. laser light cable diameter	100 μm	300 μm	400 μm	200 μm	400 μm	300 μm	600 μm	400 μm	600 μm	300 μm	400 μm	600 μm
Structural design
Dimensions, Basic version (W x H x D)	-	-	-	980 mm x 1220 mm x 505 mm	980 mm x 1220 mm x 505 mm	980 mm x 1220 mm x 505 mm	-	980 mm x 1220 mm x 505 mm	980 mm x 1220 mm x 505 mm	-	1500 mm x 1370 mm x 730 mm	1500 mm x 1370 mm x 730 mm
Dimensions, Extended version (W x H x D)	-	-	-	980 mm x 1220 mm x 715 mm	980 mm x 1220 mm x 715 mm	980 mm x 1220 mm x 715 mm	-	980 mm x 1220 mm x 715 mm	980 mm x 1220 mm x 715 mm	-	1500 mm x 1370 mm x 990 mm	1500 mm x 1370 mm x 990 mm
Dimensions (W x H x D)	485 mm x 700 mm x 800 mm	485 mm x 700 mm x 800 mm	485 mm x 700 mm x 800 mm	-	-	-	980 mm x 1220 mm x 505 mm	-	-	1500 mm x 1370 mm x 730 mm	-	-
Max. number of laser light cables	3	3	3	6	6	6	3	6	6	6	6	6
Installation
Protection class (air cooling)	IP22	IP22	IP22	IP22	IP22	IP22	IP22	IP22	IP22	-	-	-
Protection class (water cooling)	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54
Ambient temperature (water cooling)	10 °C - 40 °C	10 °C - 40 °C	10 °C - 40 °C	10 °C - 40 °C	10 °C - 40 °C	10 °C - 40 °C	10 °C - 40 °C	10 °C - 40 °C	10 °C - 40 °C	10 °C - 40 °C	10 °C - 40 °C	10 °C - 40 °C

Compare products End comparison End comparison	TruPulse 21	TruPulse 33	TruPulse 44	TruPulse 62	TruPulse 74	TruPulse 103	TruPulse 106	TruPulse 124	TruPulse 156	TruPulse 203	TruPulse 304	TruPulse 556
Laser parameters
Laser power at the workpiece	20 W	30 W	40 W	60 W 65 W	70 W	90 W 95 W	110 W	110 W 125 W 140 W	140 W 150 W 160 W	200 W	300 W	530 W
Max. peak pulse power	1.5 kW	3 kW	3 kW	3 kW 5 kW	4 kW 6 kW	5 kW 6 kW 8 kW	4 kW	6 kW 9 kW	6 kW 10 kW	6 kW 8 kW	10 kW	10 kW
Beam quality	4 mm▪mrad	12 mm▪mrad	16 mm▪mrad	8 mm▪mrad	16 mm▪mrad	12 mm▪mrad	25 mm▪mrad	16 mm▪mrad	25 mm▪mrad	12 mm▪mrad	16 mm▪mrad	25 mm▪mrad
Wavelength	1064 nm	1064 nm	1064 nm	1064 nm	1064 nm	1064 nm	1064 nm	1064 nm	1064 nm	1064 nm	1064 nm	1064 nm
Adjustable pulse duration	0.2 ms - 50 ms	0.2 ms - 50 ms	0.2 ms - 50 ms	0.2 ms - 50 ms	0.3 ms - 50 ms	0.3 ms - 50 ms	0.3 ms - 50 ms	0.3 ms - 50 ms	0.3 ms - 50 ms	0.3 ms - 50 ms	0.3 ms - 50 ms	0.3 ms - 50 ms
Max. pulse repetition frequency	909 Hz	909 Hz	909 Hz	909 Hz	833 Hz	833 Hz	833 Hz	833 Hz	833 Hz	833 Hz	833 Hz	833 Hz
Max. pulse energy	15 J	30 J	30 J	20 J 50 J	30 J 60 J	30 J 60 J 90 J	30 J	30 J 70 J 90 J	30 J 80 J 120 J	55 J 90 J	60 J 90 J	60 J 100 J
Min. laser light cable diameter	100 μm	300 μm	400 μm	200 μm	400 μm	300 μm	600 μm	400 μm	600 μm	300 μm	400 μm	600 μm
Structural design
Dimensions, Basic version (W x H x D)	-	-	-	980 mm x 1220 mm x 505 mm	980 mm x 1220 mm x 505 mm	980 mm x 1220 mm x 505 mm	-	980 mm x 1220 mm x 505 mm	980 mm x 1220 mm x 505 mm	-	1500 mm x 1370 mm x 730 mm	1500 mm x 1370 mm x 730 mm
Dimensions, Extended version (W x H x D)	-	-	-	980 mm x 1220 mm x 715 mm	980 mm x 1220 mm x 715 mm	980 mm x 1220 mm x 715 mm	-	980 mm x 1220 mm x 715 mm	980 mm x 1220 mm x 715 mm	-	1500 mm x 1370 mm x 990 mm	1500 mm x 1370 mm x 990 mm
Dimensions (W x H x D)	485 mm x 700 mm x 800 mm	485 mm x 700 mm x 800 mm	485 mm x 700 mm x 800 mm	-	-	-	980 mm x 1220 mm x 505 mm	-	-	1500 mm x 1370 mm x 730 mm	-	-
Max. number of laser light cables	3	3	3	6	6	6	3	6	6	6	6	6
Installation
Protection class (air cooling)	IP22	IP22	IP22	IP22	IP22	IP22	IP22	IP22	IP22	-	-	-
Protection class (water cooling)	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54
Ambient temperature (water cooling)	10 °C - 40 °C	10 °C - 40 °C	10 °C - 40 °C	10 °C - 40 °C	10 °C - 40 °C	10 °C - 40 °C	10 °C - 40 °C	10 °C - 40 °C	10 °C - 40 °C	10 °C - 40 °C	10 °C - 40 °C	10 °C - 40 °C

PDF <1MB

Technical data sheet

The technical data of all product versions as a download.

TruControl

TruControl is the control software for your TRUMPF solid-state laser – for quick and simple operation. You can program pulse shapes individually to match your application. The laser power is controlled in real time to ensure maximum reproducibility of your process results. In order to retrace important quality data of your produced parts even years later, the optional DataStore software module records all data relevant to quality.

If external controls are present, TruControl will communicate with them via all standard interfaces. Inputs are made via the touchscreen of the operating panel or via a panel PC. You can integrate your laser into the network via Ethernet and connect multiple PCs.

TO PRODUCT

With TRUMPF you have the ability to adapt your solid-state laser to your installation and operating situation with flexibility. This applies, for example, to all beam guidance components and the control. You also have several options for the cooling water supply. Interfaces for different optics are provided right from the start. To save costs, your beam source can supply several work stations at the same time. The TRUMPF Remote Service helps you to ensure your system remains available, anywhere and at any time.

Flexible, integrated beam guidance elements

There are many options available to you for adapting the laser to your individual situation with flexibility. In addition to the laser power and pulse energy, you can also choose the number of fiber outlets up to a total of six. The laser power is regulated for each outlet. The plug & play optical laser cables can be easily connected to different work stations. This allows multiple work stations to operate simultaneously with split laser power or one after the other at full laser power. The modular layout enables field repairs to be carried out on site, as well as making the system suitable for retrofitting.

TRUMPF laser network

With the laser network, you can network one or more lasers with up to six work stations in each case. In the process, your laser either splits its power to multiple stations, or it supplies them in turns with full power. This will even enable you to combine different applications, such as welding and cutting. The overall availability of your manufacturing systems will increase as a result due to simple redundancy concepts.

Convenient and flexible control

The TruPulse can be equipped with virtually all standard fieldbus interfaces for control and actuation. The following are also available: real-time interface, parallel digital I/O, interface for process sensor systems, OPC UA software interface, and analog input boards.

The TruPulse has an interface to connect TRUMPF processing optics, such as the PFO 20.

Interface for intelligent optics

Intelligent optics can be synchronized with your laser via a dedicated interface. For example, the CFO focusing optics or PFO scanner optics can be used optimally for your purposes. You can program the processing optics easily via the laser control system. You do not need additional PCs or control systems.

Remote Services

In the event of an error, TRUMPF service experts will remotely access your laser via a secure remote connection. In many cases the error can be remedied this way, or the configuration of the laser can be modified in a way that enables you to continue manufacturing until the spare part arrives, thus minimizing idle time in production.

Flexible cooling options

For cooling of the laser you can select between water/water or water/air compressor cooling, which means that the TruPulse laser can also be used at high ambient temperatures. If you already have your own cooling circuit in place, you can use it in conjunction with a plate heat exchanger.

WeldAssist

The WeldAssist database provides you with welding parameters for various materials and focal diameters. This makes set-up easier for frequently changing laser applications.

Due to the TRUMPF sensor systems, your production will always be effective and cost-effective. The sensor products VisionLine, CalibrationLine or integrated pyrometers ensure stable processes by monitoring all the processes in laser production, playing an important part in your process reliability. Processing continues uninterrupted during measurement – no interruptions are required, saving you valuable production time.

Image processing

TRUMPF VisionLine image processing detects features on the components and ensures that welding is always in the correct location.

VisionLine Basic

A digital camera image with cross-hairs in the laser focus helps with workpiece monitoring and teaching.

To the product group

Calibration tool

The TRUMPF CalibrationLine tool checks and corrects the focal position and laser power on the workpiece at regular, individually definable intervals.

CalibrationLine Focus

Regular checking of focal position

To the product group

Lasers and laser systems – with us, the perfect pair. All beam sources are optimally attuned to the requirements of the TRUMPF laser systems. You can choose from numerous versions and options, resulting in a system which is precisely tailored to your task. It is, of course, also possible to integrate our lasers directly into your production lines.

TruLaser Cell 3000

The all-rounder

To the product

TRUMPF offers you all the components you need for beam guidance from the laser to the workpiece. This also applies for various focusing optics which have proven themselves to be precise and reliable over many years of industrial use. The optics can be easily integrated – both in stand-alone processing stations as well as in complete production lines. The modular structure enables the optics to be continually adapted to the laser types as well as the different processing situations.

Focusing optics

Regardless of whether you are welding, cutting, ablating, heat treating, or drilling, you can count on high-quality process results with robust focusing optics from TRUMPF.

BEO D25

Compact welding optics for lasers with power of up to 200 W

BEO D35

Versatile applications in cutting and welding up to the kilowatt range.

BEO D70 focusing optics with observation camera, crossjet, and aerator nozzle

BEO D70-2

Large working distances with small focal diameters

CFO

Intelligence for your welding process – CFO processing optics for solid-state lasers

To the product group

Programmable focusing optics

The ideal optics for remote processing

PFO 20

Welding and drilling with the programmable focusing optics PFO

To the product group

This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
