TruPunch 3000

The productive machine for your punching - forming and tapping included

Productive universal machine for punching parts of the highest quality

For anyone who would like to punch efficiently and yet economically: the compact TruPunch 3000 is your complete solution for versatile part processing. It achieves outstanding part quality thanks to the descending die and is easy to operate with the touchpoint HMI.

One machine, many options

You can punch, form, tap, emboss, mark, engrave and deburr with a TruPunch machine.

High-quality results

Scratch-free punching thanks to the descending die.

Clever parts handling, automatic loading and unloading

Removal and sorting solutions for small to large parts. The SheetMaster Compact loads and unloads, the SortMaster Compact sorts finished parts.

Compact, dynamic, and energy-saving

With the dynamic Delta Drive you need less than 30 m² installation surface and significantly less energy than with hydraulic drives.

TRUMPF tool concept

At TRUMPF you get top quality punching tools for creating threads or bends in your parts, for example.

Simple operation

Fewer operating steps, easy to learn – the touchpoint HMI makes it much easier to work with the machine.

The functions and opportunities of the TruPunch 3000
Punching is a time-saving technology – find out about these fascinating punching machines!
Delta Drive – the flying punching head
Your machine automatically sorts parts up to a size of 7 x 7 in
Loading and unloading – the SheetMaster Compact
SortMaster Compact: Clever automation for close quarters
Delta Drive: flying punching head and energy-saving drive

Compact, dynamic, and efficient – the patented Delta Drive takes away the need for the sheet and support table to move in the Y axis because it enables the punching head to "fly", i.e. to move back and forth, for the very first time. In addition, the electric punch drive saves significantly more energy compared to hydraulically driven punching machines.

TruPunch 3000, electronic component

Electronic component

Produce with flexibility using tools for every application - for example, tabs, cups and roller offsetting. For this component, the following tools were used: step tool, bracket tool, cup tool rectangular and round, offset roller tool, and pinching roller tool.

TruPunch 1000, workpiece

Workpiece

With the largest tool range in the world, the machine offers the highest level of processing flexibility. For this workpiece, the following tools were used: roller beading tool, MultiCut tool, cup tool, and roller offsetting tool.

TruPunch 3000, workpiece

Workpiece

Using the MultiBend tool, you can produce 90° bends in a variety of lengths. For this workpiece, the following tools were used amongst others: MultiBend, extrusion tool, tapping tool, cup tool, and bridge tool.

Easy Type

Embossing of numbers and letters

You can mark parts with flexibility, including the widest range of letters and numbers, using the embossing tool.

Integrated flattening

The "integrated flattening" machine function and the corresponding tool make it possible to even out surface irregularities during the punching process itself – without any post-processing.

TruPunch 3000 medium format
TruPunch 3000 large format
Dimensions
Width 6282 mm 7644 mm
Depth 6548 mm 7666 mm
Height 2200 mm 2200 mm
Maximum stroke rate
Punching (E = 1 mm) 800 1/min 690 1/min
Marking 1000 1/min 1000 1/min
Working range
Punching mode, X axis 2500 mm 3000 mm
Punching mode, Y axis 1250 mm 1550 mm
Maximum sheet thickness 6.4 mm 6.4 mm
Maximum workpiece weight 150 kg 230 kg
Maximum punching force 180 kN 180 kN
Tools
MultiTool tool changing time 0.5 s 0.5 s
Number of tools/clamps 18 pieces / 2 pieces 21 pieces / 3 pieces
Part removal
Maximum part size, part removal flap, punching 400 mm x 600 mm 400 mm x 600 mm
Maximum part size, fixed chute, punching (with moving table) 180 mm x 180 mm 180 mm x 180 mm
Consumption values
Average power input of active auto-shutdown 0.5 kW 0.5 kW
Average power input in production 3.3 kW 3.3 kW

With the TruPunch 3000, you are not only manufacturing in a particularly flexible way, but also to the highest quality. Innovative functions guarantee the best processing results.

Quality

Descending die

The descending die enables low-scratch punching and forming processes and prevents the risk of things getting caught.

Integrated flattening

When punching sheet metals, compression and tensile stresses are placed on the workpiece which can cause sheet deformation. The "Integrated flattening" machine function and the corresponding tool make it possible to even out surface irregularities during the punching process itself.

Table equipment

Ball tables or brush tables are available for gentle material handling.

Simple operation

Touchpoint HMI

It can be very easy to program punching parts – machine operation becomes as intuitive as when using a tablet or smartphone with the new Touchpoint-HMI from TRUMPF. It helps you finish the part much more quickly – and even novices will quickly learn how to work with the software.

Process reliability

Large part removal flap

A large part removal flap enables automated unloading of parts up to a format of 16 x 24 in. A sensor in the part removal flap detects whether parts have got caught in the scrap skeleton. This means you can reliably remove parts to containers, europallets, or conveyor belts in both punching and laser operation.

Sorting function

Your machine automatically sorts parts up to a size of 7 x 7 in. Finished parts go through a chute into an intermediate buffer storage. There are up to four different boxes under the machine. The intermediate buffer storage moves to the correct box and adds the parts to this.

Smart punch monitoring

Before a tool change, this function checks whether a hole has actually been punched in the sheet. In this way, the machine detects at an early stage when punches are broken, and can pass this information on to the operator. The smart punch monitoring function therefore avoids rejects, especially during night or weekend shifts.

Parts conveyor belts

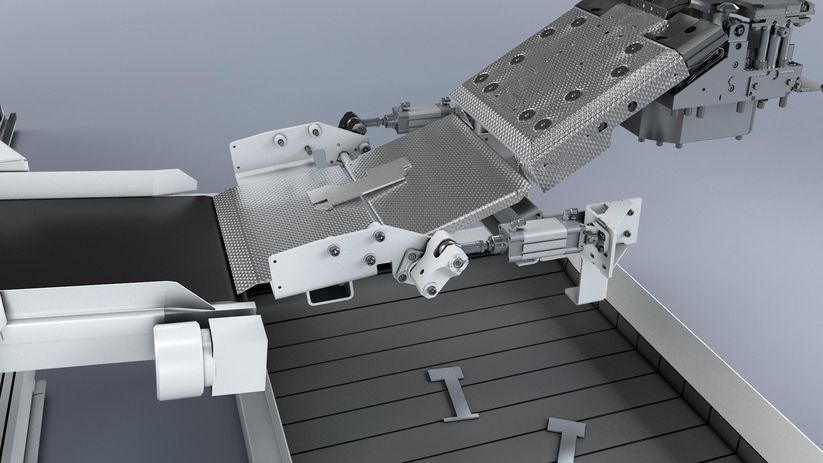

Parts that are removed via the large part removal flap can be transported into boxes via conveyor belts.

Chip conveyor

The chip conveyor can be used to automatically transport punching slugs into a container.

Digital connection and integration for smart solutions

Seamless integration of multiple TRUMPF machines into your own software environment is very easy. We have the right solution for every combination, whether it be integration into Oseon or a connection to monitoring and analysis tools. A connection to third-party software systems is also possible with our interfaces based on the OPC UA standard.

Sustainability

TruPunch 1000 (S19) with Delta Drive
Delta Drive: Efficient drive allows punching head to fly

Compact, dynamic, and energy-efficient – the patented Delta Drive takes away the need for the sheet and support table to move in the Y axis because it enables the punching head to "fly", i.e. to move back and forth, for the very first time. In addition, the electric punch drive saves significantly more energy in comparison with hydraulically driven punching machines

TruTops Boost

Construct and program your laser, punching, and combination punch laser machines intelligently with TruTops Boost, your all-in-one 3D solution. Numerous automated processes save you time-consuming routine processes and the joint nesting pool saves time and material. You also always have an overview of all manufacturing orders and order-based work.

Software

The software portfolio from TRUMPF optimizes your entire production process – from the customer query to delivery of the finished part. TRUMPF combines the software intelligently with machines and services to create customized Industry 4.0 solutions for your Smart Factory.

MultiTool
MultiTool

You can boost the productivity of your punching machine with a tool adapter for up to ten inserts – in particular for small punching operations.

MultiBend

90° bends of different lengths up to 2 in.: When working with the MultiBend, there is no need for an additional operation on the bending machine.

Descending die

The descending die enables a scratch-free punching and forming operation and prevents the risk of things getting caught.

Punching tools at a glance

TRUMPF offers the world's largest range of punching tools on the market. You will find the perfect solution for every punching and forming application.

Bring clarity to your procedures with our automation solutions. Employees can concentrate on their core tasks and customers will value you as a reliable supplier. You produce more cost-effectively and gain financial flexibility.

SheetMaster Compact, space-saving entry level solution for loading and unloading

Loading and unloading

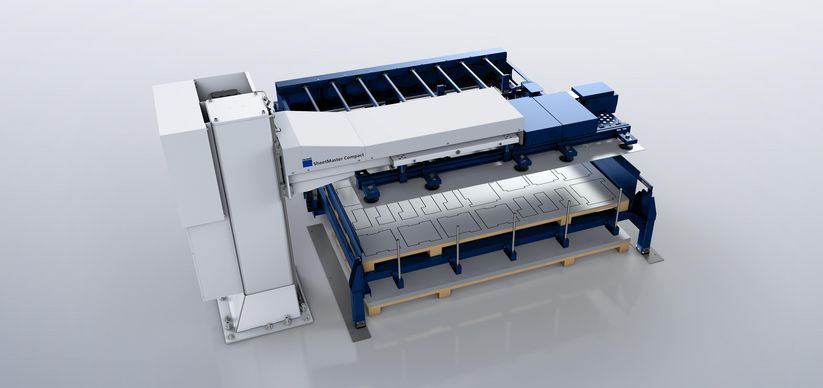

The SheetMaster Compact takes over the process-reliable loading of sheets as well as the unloading of microjoint sheets and scrap skeletons. In this way, the machine operates completely automatically, if required, with a load capacity of up to three tonnes. This increases productivity and also relieves the strain on the operator.

SortMaster Box Linear, unloading and sorting of finished parts

Sorting

The SortMaster Compact removes and sorts the parts from your punch laser machine fully automatically. Especially when it comes to small and complex parts, the individually controllable suction cups make it possible to remove parts in the optimum way. Due to the minimal installation area, there are no extra space requirements.

Tool handling

The tool automation system ToolMaster Linear guarantees fast tool changes.
