Services

Spare parts

Rely on our global logistics network – and above all, on the guaranteed quality of our Genuine Parts.

Your investment should pay off in the long term. Spare parts from TRUMPF - also called Genuine Parts - help with this. This is because when you use spare parts tailored to your product, you can manufacture parts with greater safety, reliability and efficiency.

An overview of your benefits

Flawless compatibility

Perfectly matched to your TRUMPF machine right from the start, our spare parts ensure your performance and productivity are maximised over the long term.

Prompt delivery worldwide

At TRUMPF, you can get the spare part you need at any time and as quickly as possible, no matter where your production is.

Quality promise for our Genuine Parts

Should a replacement be necessary, we guarantee the quality of our products with "Xchange" beyond the warranty.

Competence that inspires

Our expertise gives you the competitive edge. Our experts are always ready to provide you with advice and support from ordering to installation and maintenance.

Product enhancements

The low adjustment effort minimises the idle times of your machine.

TRUMPF E-Shop for spare parts

The TRUMPF E-Shop supports you with many helpful filters and functions as you search for, select and order your spare parts.

Spare parts E-Shop

Quality: details which make a difference

Verified quality of TRUMPF Genuine Parts

Our quality promise

When it comes to quality, you should leave nothing to chance. Even during their development, spare parts, machines, lasers, and laser systems from TRUMPF are coordinated with each other to the finest detail. This allows us to not just achieve high process reliability, but also to offer spare parts that function according to the plug & play principle and require no adjustment whatsoever. So that it remains like this, TRUMPF ensures the highest quality standards.

Hochregallager für TRUMPF Original Teile

Availability: quickly in place

Even a small part can be crucial for the availability of your TRUMPF product. A global network of sales and logistics experts therefore ensures that you are provided with the required spare parts as soon as possible – no matter whether your production facility is located in Europe, America or Asia. The majority of orders are delivered the next day. Even when a TRUMPF machine, laser or laser system has not been produced for a long time, you can rely on the right spare parts for the long term.

Xchange: the quality promise for spare parts

Spare parts from TRUMPF meet the highest quality requirements. With Xchange we therefore also guarantee the quality of our products even beyond the warranty. For more than 5,000 high-quality spare parts, in the event of replacement Xchange guarantees you high credit notes even a long time after purchase. Depending on the spare part, the time period for this can be four or even ten years. You can recognise the Xchange parts quite simply from the logo on the box or from the note on your shipping documents.

MyTRUMPF makes life so much easier

Order your TRUMPF spare parts conveniently and comfortably online in our E-Shop. And keep track of all your orders thanks to the MyTRUMPF order overview. Invoice downloads and shipment tracking included. Register now for free.

Open MyTRUMPF

Our spare parts

Power Tube

The original Power Tube is the heart of your laser generator and ensures the maximum power of your laser.

Lenses

Careful material selection and stringent quality checks ensure that original lenses optimally focus the laser beam.

Nozzles

Choosing the right nozzle is crucial for part quality. Don't leave anything to chance and ensure you obtain the best cutting quality with the original nozzles from TRUMPF.

Nozzle holders

To ensure the best cutting results at all times, the highest quality standards are applied when selecting the material for the original nozzle holders, along with the highest precision during the joining process.

Protective glasses

Genuine protective glasses are produced according to precise specifications to meet the wavelength of the laser light and the requirements of the cutting and welding processes, as well as the sensor system.

Bellows

Original bellows are made from particularly flexible, but very stable and heat-resistant plastic. This means they can also withstand high mechanical loads.

Mirrors

At TRUMPF, diamond-cut optics are produced in a highly precise manufacturing method with specially developed fixtures and tools.

Filter elements

With our original filter elements, TRUMPF makes no compromise and even goes beyond the legal requirements in order to protect employees against emissions when laser cutting.

Easy Kits and filters

In order to increase the service life of the resonator and optics, service the cooling circuit and replace the filter cartridges annually. In doing so, you use the Easy Kit and Easy Filter to remove impurities and particles from the cooling circuit.

Original Power Tubes

The original Power Tube by TRUMPF is the heart of the generator of many CO₂ laser processing machines . It ensures the maximum power for your laser. The compatible electrical parameters of Power Tube and generator ensure perfect interaction and top process reliability.
Every original Power Tube (transmission tube) from TRUMPF undergoes a stringent quality inspection. This guarantees a durable, high-quality product and a high degree of reliability.

Power Tube

A genuine part developed and tested in Germany, with a warranty of up to 24 months/5000 h for the Power Tube Plus and 12 months/3000 h for the Power Tube Basic.
The highest quality requirements are certified in a test certificate delivered with each Power Tube
Full laser power due to parameters specifically adapted to the TRUMPF generator

Original lenses

For an excellent cutting result from your laser machine, you simply cannot do without a high-quality lens in accordance with TRUMPF specifications. Careful material selection and stringent quality checks ensure that original lenses optimally focus the laser beam. This means you are provided with a precisely coordinated unit, from the machine to the sensor system, to the original lens. A perfect focal position and optimal cutting results are included. With the intelligent lens with RFID chip and the LensLine sensor system with condition check, genuine parts provide you with even more certainty. The correct installation and right focal length of the lens are always ensured. Cleaning cycles are also optimised through the interaction of LensLine and lens with RFID chip, saving up to 40% in non-productive times.

Variants

Cut-lens with RFID chip / Cut-lens

Up to 40% time saving thanks to lens cleaning as required
Highest process reliability due to lens failure sensor system and RFID condition checking
Lower part costs due to optimised cleaning cycles

High-pressure lens

High process reliability thanks to lens failure sensor system
Plug & Play as a result of perfectly coordinated cutting parameters
The best cutting result through tried-and-tested TRUMPF quality

Original nozzles

An essential component: it is through the cutting nozzle that the laser beam and cutting gas meet the workpiece. Selecting the right nozzle is therefore crucial for part quality. Ensure you have the best cutting quality with the original nozzles from TRUMPF. These are manufactured according to particularly stringent quality specifications. The precise surface of the nozzle created minimises the amount of slag spatter that sticks, ensuring the perfect functioning of the distance regulation. A special material alloy conducts heat away optimally and at the same time guarantees a long nozzle service life. You also benefit from the optimal nozzle geometry. Original nozzles guarantee faultless gas flow and minimised burr formation. They also only use as much cutting gas as is actually necessary.

Variants

M12 standard nozzle / M12 slim nozzle

Best cutting quality in every machining direction
Minimal cutting gas consumption due to precise geometries and strictest production tolerances
High process reliability due to perfect interaction with the nozzle changer

M12 Performance nozzle

Significant jump in quality, including improved piercing as well as reduced burr formation and discolouration
Clear increase in productivity when cutting with nitrogen
Unique nozzle inner geometry contributes to optimisation of the cutting result

M12 BrightLine nozzle

Flow-optimised nozzles for outstanding edge quality
Stable cutting process through more homogeneous gas flow
Very good cut quality without reworking

M12 / M28 CoolLine nozzle

Very small web widths and elaborate contours are possible in thick sheet due to cooling with water mist
Precise nozzle holes ensure high process stability thanks to the optimal water supply
Lower part costs due to the minimisation of rejects for elaborate forms in thick sheet

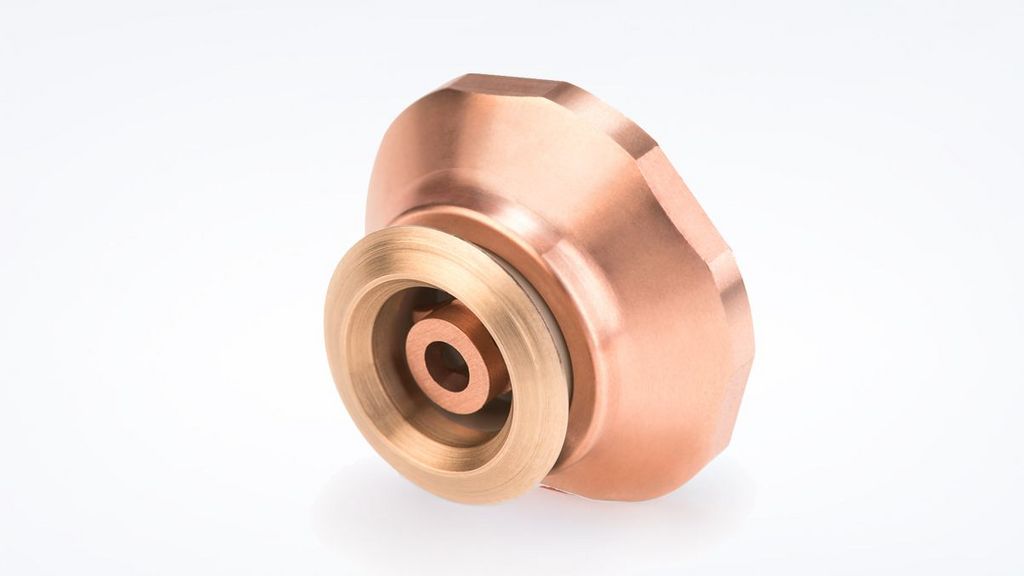

M12 touchdown nozzle

Increase your sheet throughput by up to 100% with the Highspeed Eco cutting process and the touchdown nozzle
Reduce the cutting gas consumption by 70% The nozzle sleeve is placed directly on the sheet and prevents the cutting gas from escaping at the sides
Cost-efficient replacement of the individual parts depending on the wear thanks to a new modular concept
Patented nozzle design

M12 bi-flow nozzle

40% lower cutting gas consumption due to optimum gas flow as a result of the special nozzle geometry
Increase your sheet throughput by up to 100% by combining the Highspeed cutting process and the bi-flow nozzle
Very high cut quality

M8 standard nozzle, non-chrome-plated / M8 standard nozzle, chrome-plated

Unbeatable nozzle quality for your TruLaser and TruMatic
Best cutting quality in every machining direction
Minimal cutting gas consumption due to precise geometries and strictest production tolerances

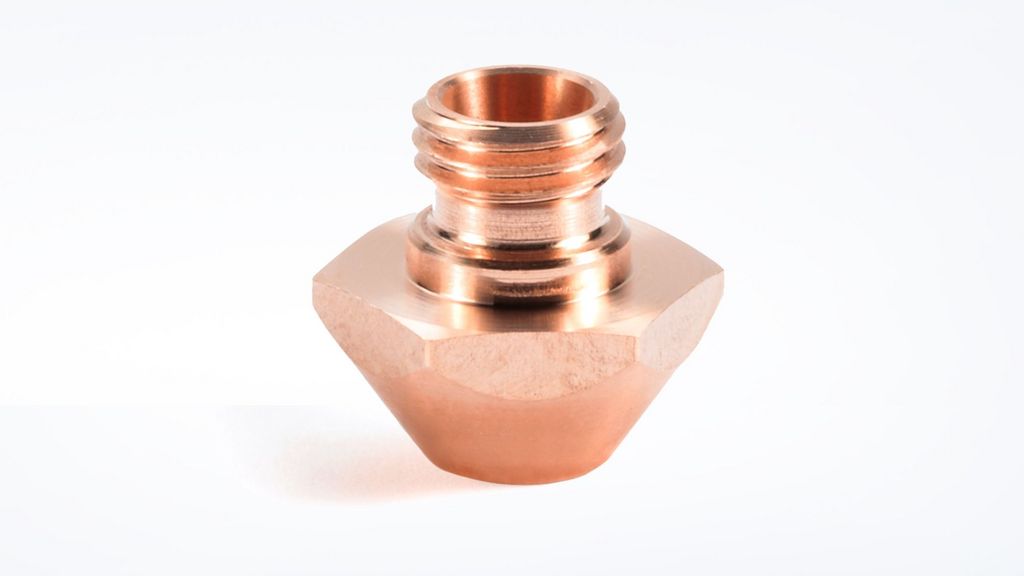

M6 standard nozzle / M6 slim nozzle

Best cutting quality in every machining direction
Minimal cutting gas consumption due to precise geometries and strictest production tolerances
Unbeatable nozzle quality for your TruLaser Tube and TruLaser Cell

Original BrightLine nozzle

Original CoolLine nozzle

Original nozzle holders

When they are optimally coordinated, nozzle holders, nozzles and distance sensor systems guarantee the best cutting process and ideal cutting results. This is why the highest quality standards are also applied for original nozzle holders during production. The ceramic and thread insert are bonded with the greatest precision. Once joined, they are inseparable and extremely robust. The resistant materials of the nozzle holder not only withstand extremely high temperatures but also ensure the electrical insulation in the high frequency range. This is necessary for the distance sensor system to always ensure the perfect distance between the sheet and the nozzle. By using the original, you therefore attain a constant focal position.

Variants

M12 standard nozzle holder

High-quality raw materials for the correct distance regulation and constant focal position
Long service life due to a precise joining process for the ceramic and thread insert
Using the original makes it possible to use the complete range of functions of the nozzle changer
The nozzle holder is also compatible with slim nozzles, Performance nozzles and BrightLine nozzles

M8 standard nozzle holder

Long service life due to a precise joining process for the ceramic and thread insert
Optimal process reliability due to the nozzle's perfect fit
High-quality raw materials for the correct distance regulation and constant focal position
Perfect beam characteristics on the workpiece due to the use of original nozzle holders and nozzles

M6 standard nozzle holder

Optimal process reliability due to the nozzle's perfect fit
High-quality raw materials for the correct distance regulation and constant focal position
Perfect beam characteristics on the workpiece due to the use of original nozzle holders and nozzles
Long service life due to a precise joining process for the ceramic and thread insert

M12 universal nozzle holder / M28 CoolLine nozzle holder

Unique sealing concept enables the precise supply of water mist through CoolLine nozzles
Complex manufacturing process using special tools
For machines with a universal cutting head only one nozzle holder is required for Standard, BrightLine and CoolLine nozzles
Use of the complete range of nozzle changer functions is only possible with the M12 universal nozzle holder

Weitere Düsenhalter in unserem E-Shop

Holen Sie sich für jede Schneidanwendung den richtigen Düsenhalter: Die komplette Übersicht unseres Portfolios an Original Düsenhaltern finden Sie in unserem Online Shop.

To the E-Shop

Genuine protective glasses

In solid-state laser machines and systems, the lens is protected against impurities by a protective glass. This serves as a pressure window for the cutting gas used and at the same time keeps spatter, smoke residue and steam away from the lenses. Not every protective glass can withstand this pressure. Genuine protective glasses from TRUMPF are produced according to precise specifications to meet the wavelength of the laser light and the requirements of the cutting and welding processes, as well as the sensor system. A special coating as well as the use of particularly pure materials guarantee a low degree of reflection and absorption and prevent thermal changes to the glass. Genuine protective glasses form the foundation of reliable cutting and welding processes.

Example

Protective glass

Optimal protection of the beam guidance against impurities
Best cutting and welding results due to special coating and the highest purity of the glass
Highest reliability – original protective glass completely meets TRUMPF requirements in all parameters

Original bellows

The axes of your machines and laser systems are covered with bellows to protect the sensitive beam guiding optics of your laser against dust and other particles. Only purified air or nitrogen is permitted inside the bellows, so that the laser beam is not absorbed or deflected. Due to the material quality, original bellows guarantee the best protection of the beam path, also ensuring the focal positioning on the workpiece. The bellows are subjected to extreme mechanical loads due to the high speeds of the cutting head and the entire motion unit, as well as the resulting pressure changes. This is why original bellows are made from particularly flexible, but also very stable and self-extinguishing plastic. Even in 3-shift operation, this means you can count on the long service life of your original bellows for the long term.

Variants

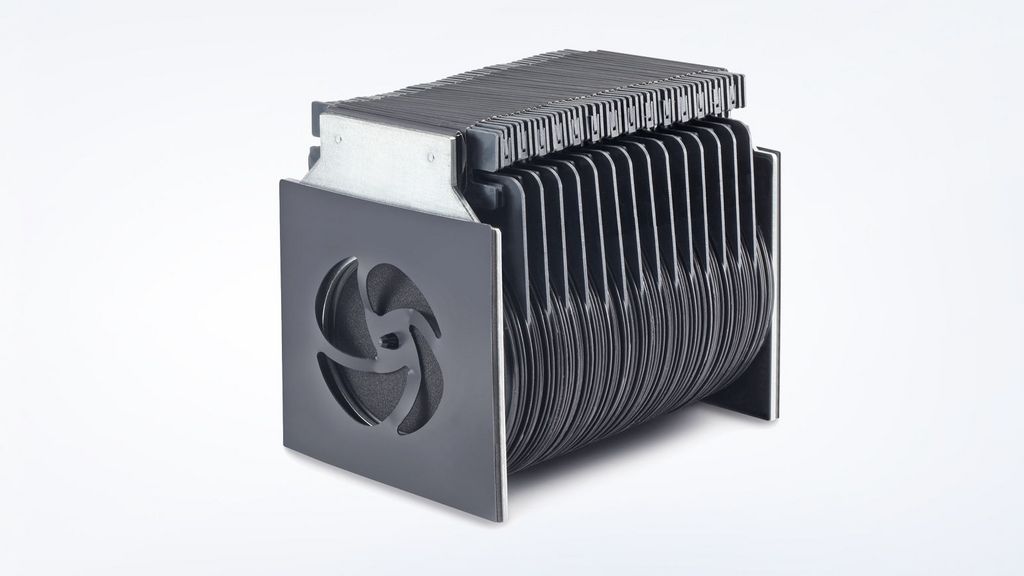

Beam guidance bellows

Maximum service life thanks to high-quality plastics
Perfect protection of the sensitive beam guidance against dust and dirt due to perfectly sealed original bellows
Additional protective function due to round shape and the injection molded plastic of the disk bellows
Complete laser power and maximum productivity thanks to reliable beam guidance

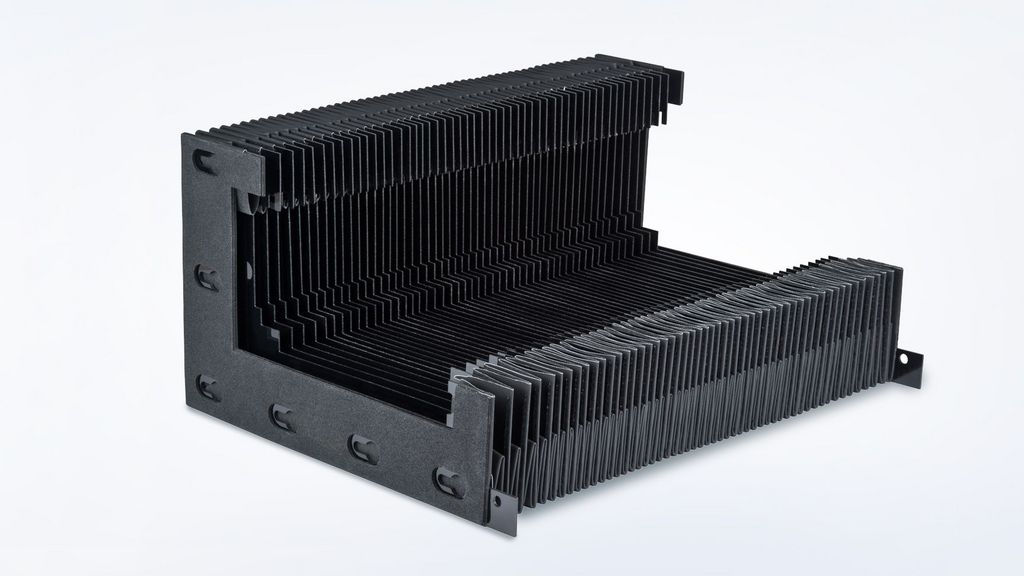

Guide rail covers

Original bellows fit perfectly, are stable and can withstand the highest mechanical loads
Perfect properties due to compliance with quality standards as regards shape, material and tolerances
TRUMPF will take care of the identification, installation and removal of the original bellows

Original mirrors

Numerous optical elements shape, control and focus the laser beam in your TRUMPF machine. So that you gain the best part quality at the end of the cutting process, we invest a great deal of knowledge into our high-quality original mirrors. Our engineers in Development and Production are constantly working on optimising the original mirrors along the entire beam guidance. At TRUMPF, diamond-cut optics are produced in a highly precise manufacturing method with specially developed fixtures and tools. Here, the engineers place great value on producing the water-cooled mirrors under precisely defined conditions. The shape and dimensions of the original mirrors must be excellent.

Variants

External optics

Original mirrors guarantee the highest functionality with a positive influence on the cutting quality
Meets the toughest demands as regards shape and position tolerance, roughness as well as coating
Ideal coordination of all relevant parameters with the TRUMPF product portfolio with constant performance over the entire life cycle
TRUMPF will provide you with support when identifying, installing and removing the original mirrors

Internal optics

Tailored to your TRUMPF machine or your laser system with constant performance over the entire life cycle
Meets the toughest demands as regards shape and position tolerance, roughness as well as coating
TRUMPF will provide you with support when identifying, installing and removing the original mirrors

Original filter elements

Original filter elements, tested by TRUMPF, function according to the principle of surface filtration. The dust is filtered directly at the surface and does not penetrate deeply thanks to the substrate made of permeable polyester fleece with a Teflon-coated surface. This means at least 99.95% of the particles can be filtered, even in the micrometre range – an absolute top value! Original filter elements ensure a constantly high filter performance for many years. During laser cutting, emissions are created from which your employees, the environment and components of your machine or laser system should be protected. With our original filter elements, TRUMPF makes no compromise and even goes beyond the legal requirements. To ensure long-term protection, the cleaning intervals for your original filter elements are stored in your machine control.

Example

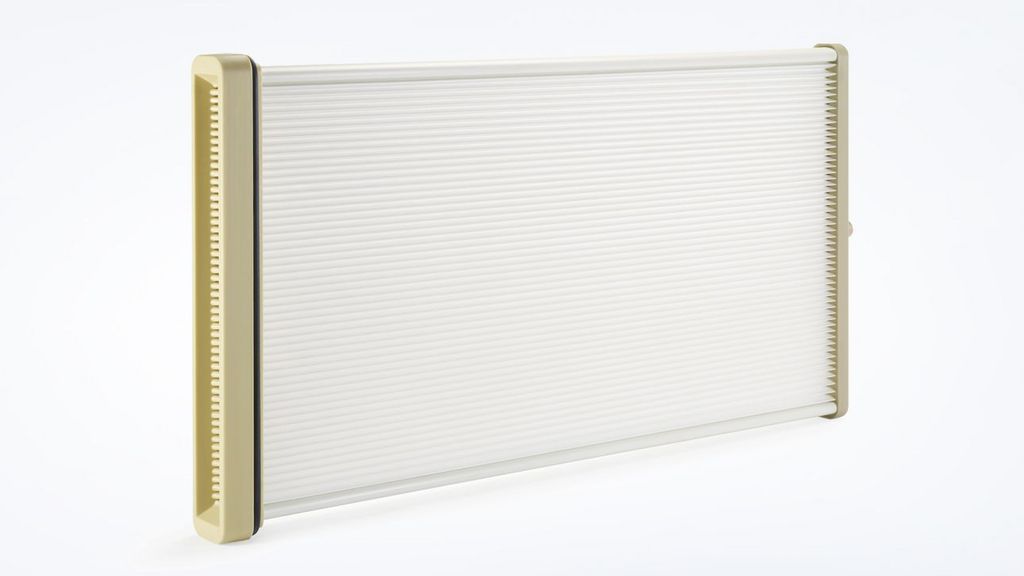

Filter element

Optimal extraction and filter performance
High-quality Teflon coating as well as residue-free processing guarantee the longest possible service life.
Patented guide pins ensure simple installation and the supplied O-rings guarantee a perfect seal.
Original filter elements ensure that lenses, bellows and mirrors also have a longer service life.

Original Easy Kits and filters

Perfect cooling is crucial for the availability of your machine. In order to lengthen the service life of the resonator and optics, you should typically service the cooling circuit annually, thereby removing impurities and particles from the cooling water. With the Easy Filter, you can recycle the used cooling water in simple steps. Together with the original Easy Kit, you can clean your cooling circuit sustainably and optimally protect your components. TRUMPF offers the right original Easy Filter and original Easy Kit for every laser machine or laser system type. This provides you with all of the components required for the cleaning cycle, such as cleaning biocide and anticorrosive agent, together in a coordinated set – there is no need for complicated metering and storage. It couldn't be more simple.

The original filter cartridges consist of a covered fibre, whose fleece layers are fused securely to each other in a special process. This manufacturing process provides you with benefits: the outstanding strength allows the original filter cartridge to withstand maximum pressure differences without losing fibres. This means your filter components and water cooling channels are constantly kept free of loose fibres. The original ensures your laser/laser system or machine is ideally cooled for the long term.

Variants

Easy Kits

Easier and faster cooling water replacement due to Easy Kits which are specific to product groups
The interval for the cooling water service is generally 12 months, which is why original Easy Kits are designed for this time period
Extended service life for the resonator and optics through specially coordinated Easy Kits
Original Easy Kits can be used on all TRUMPF lasers, laser systems and machines

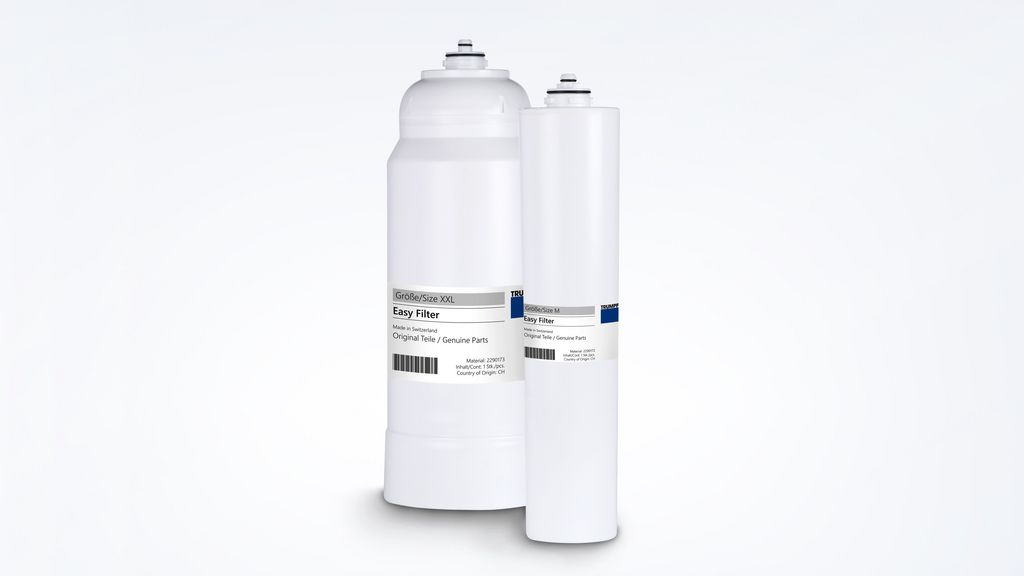

Easy Filter

Use the original Easy Filter to clean the used cooling water
Servicing work on the cooling circuit becomes much simpler, saving valuable time
Perfect preparation of the system for another year of production, together with the original Easy Kits
Original Easy Filters can be used on all TRUMPF lasers, laser systems and machines

Filter cartridges

Perfectly coordinated for TRUMPF lasers, laser systems and machines – withstands maximum pressure differences
Reliable process and optimal cooling of the machine: with original filter cartridges, the water cooling channels remain free of loose fibres
Numerous different original filters such as oil, gas, and air filters
