Mobile solution
Move by hand or with a forklift truck, then use immediately.
Automation doesn't get much quicker
The Flex Cell bending automation transforms your manual TruBend 7050 into the fastest bending cell supplied by TRUMPF. If you receive urgent orders, you can scale your production capacity for simple parts in next to no time. And without the need for additional staff on the machine. This eases your team's workload and enables you to implement autonomous shifts. You simply connect the mobile robot cell to your bending machine. This gives you a completely automated bending cell with a spacious raw material storage and a compact installation surface.
Extremely quick
The fastest bending cell for simple components from TRUMPF.
High loading capacity
Double loading capacity enables autonomous runtime of up to 42 hours.
Minimal space requirements
Automated bending power in a very small space ( <10 m²).
Plug in for versatile manufacturing
Manufacture complex parts manually, simple parts automatically. The Flex Cell is ready for production in a matter of minutes.
|
Flex Cell*
|
|
|---|---|
| Min. part size | 70 mm x 50 mm |
| Maximum part size | 600 mm x 400 mm |
| Minimum sheet thickness | 0.7 mm |
| Maximum sheet thickness | 6 mm |
| Maximum part weight | 5 kg |
| Dimensions | |
| Height | 2200 mm |
| Length | 2400 mm |
| Width | 2000 mm |
PDF <1MB
Technical data sheet
The technical data of all product versions as a download.
What makes the Flex Cell mobile bending automation system so fast? Find out more about its special features here.

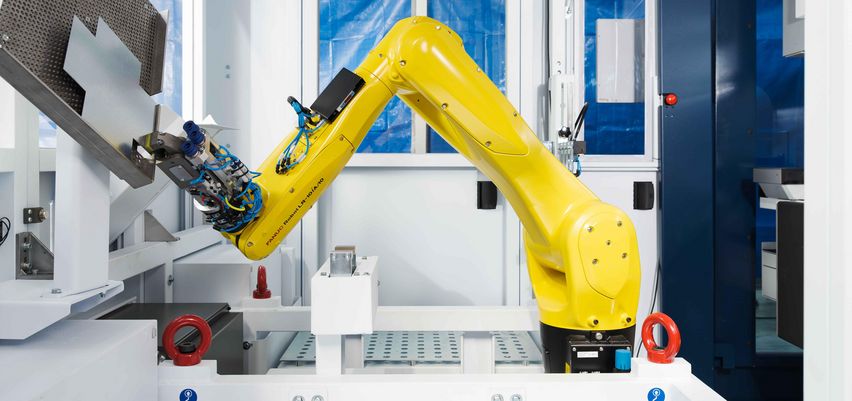

6-axis industrial robot
High-performance, precise, lightweight: the 6-axis industrial robot helps you to achieve high part precision and short cycle times. The mechanical quick-release coupling enables grippers to be changed quickly.
Centring table
You do not need to stack the blanks exactly in the loading area, as the centring table aligns them in the correct position. This enhances process reliability and saves time. The perforated sheet on the surface also prevents the parts from sticking.
Combined gripper
The Flex Cell is particularly powerful thanks to the combination of vacuum and pivoting-jaw gripper. Its movable vacuum unit ensures a low obstruction during bending. The grippers are also designed for gripping over flanges.
Double sheet detection
Guarantees a high level of process reliability: sheet thickness measuring is used to detect whether the gripper has picked up two sheets at an early stage. The double sheet detection system also serves as a regripping station.
Conveyor belt
With the conveyor belt, even delicate parts can be safely unloaded. It can also be undocked quickly, offers ample space for the operator and has minimal disruptive contours for the additional material flow.
Regripping station
Two regripping stations are integrated into the Flex Cell: a fixed one for smaller parts and an adjustable one for larger parts. The vacuum generated by each suction cup ensures that the bending parts are held securely. The short distances also enable quick regripping, which reduces cycle times.
Loading and unloading cart
Simplifying the filling and emptying process – with the loading and unloading carts, you can prepare the next parts during production and switch them out quickly and effortlessly.
ACB angle measuring system
Angle measurement on the Flex Cell – using the new ACB "Smart" method, the Flex Cell can be equipped with both ACB Wireless and ACB Laser.
Suction cup gripper
With the suction cup gripper, larger parts up to 600 x 400 mm can also be produced in the Flex Cell. The additional swivel axis reduces the need for part regripping.
This product range and information may vary depending on the country. Subject to changes to technology, equipment, price and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
*depending on the options selected
