Automation components for punching and punch laser machines

With the TRUMPF SheetMaster, you can load and unload your punching or punch laser machine automatically, and therefore, cost-effectively and reliably. Suction cups take sheets or blanks from the loading station and move them to the machine table. The SheetMaster deposits finished parts on an unloading platform. Through additional components and connection options, the automation component can be expanded efficiently.

The SortMaster Compact unloads your punching machine or punch laser machine in an automated and reliable manner. It needs very little space for this. Compact suction cups grip nearly every part, thereby ensuring a short removal time. The SortMaster Compact sorts and stacks finished parts on standard charge carriers.

The SortMaster Box and SortMaster Box Linear automatically sort small parts into up to four boxes – all while unmanned during production. As a result, you can work even more productively.

The GripMaster ensures convenient scrap skeleton handling. It automatically removes scrap skeletons and remainder strips and stacks them on a scissor table without the need for any operator intervention. As a result, your sheet metal scrap is under control at all times.

The ShearMaster simplifies the automated disposal of scrap and remainder sheets on your TruPunch 5000 and TruMatic 7000. Working parallel to production, it pulls the scrap skeletons from the machine onto its conveyor table and divides them into easy-to-handle strips using a shear unit.

The DisposeMaster automatically disposes of anything which is left over after skeleton-free punching. It sorts shredded scrap skeletons and punching slugs according to up to three material types.

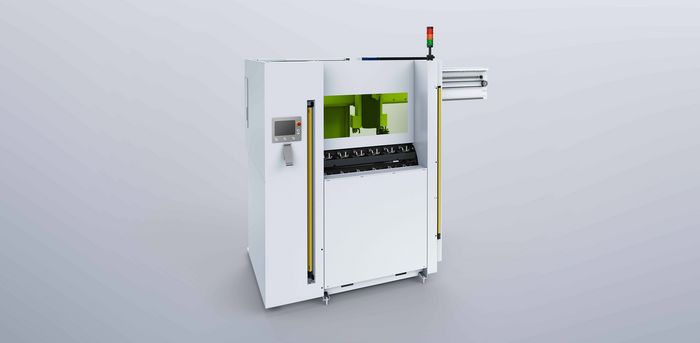

Increase the productivity of your punching and punch laser machines with the ToolMaster Linear. ​
With the fully automatic system, you will always have the right tool to hand as well as maximum flexibility.
